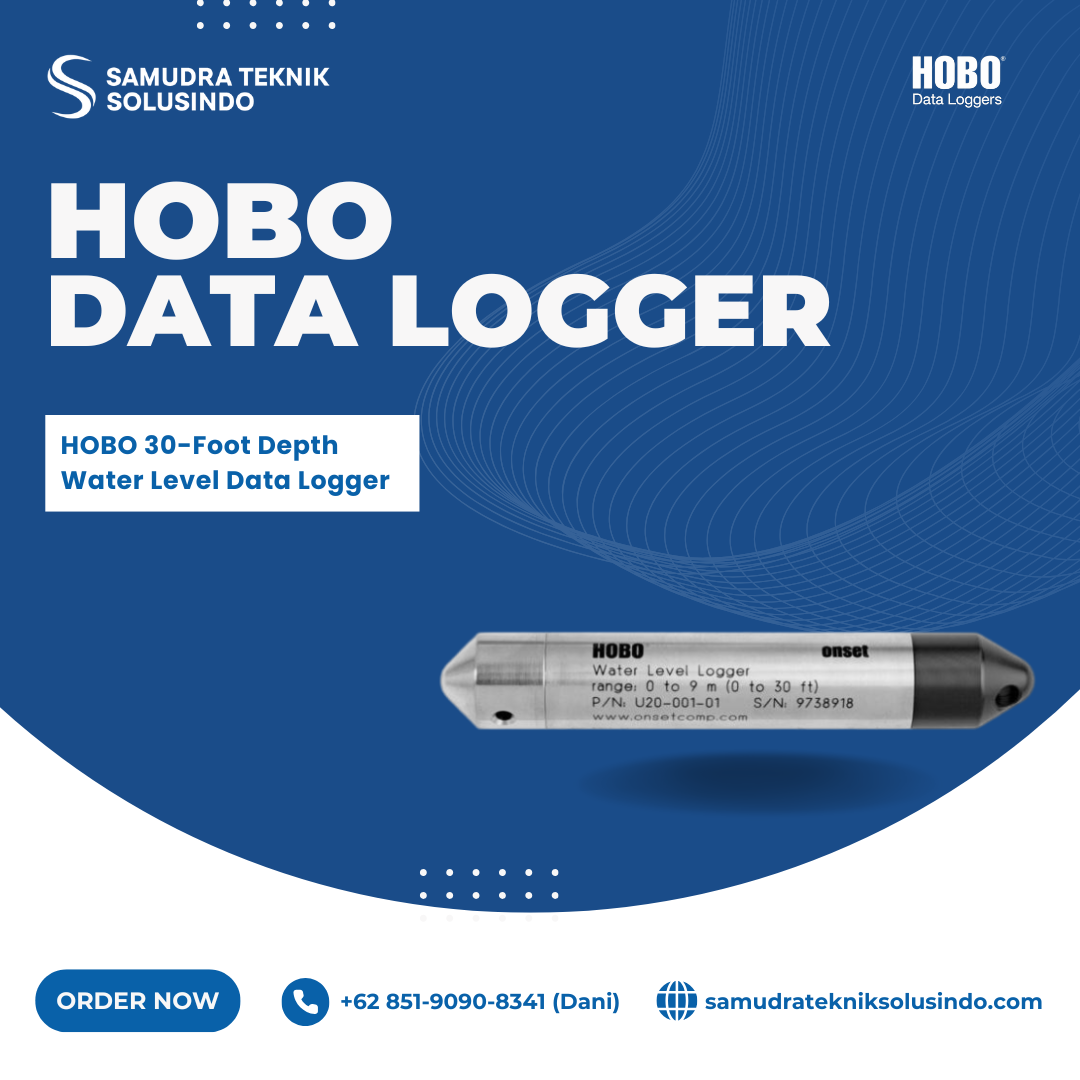

HOBO 30-Foot Depth Water Level Data Logger U20-001-01
Jika anda tertarik untuk membeli alat HOBO 30-Foot Depth Water Level Data Logger U20-001-01 yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :
PT. Samudra Teknik Solusindo
Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : sales.stsolusindo@gmail.com
Telp : +62 851‑9090‑8341 (Dani)
Deskripsi
HOBO 30-Foot Depth Water Level Data Logger U20-001-01 Menampilkan akurasi tinggi dengan harga terjangkau dan kemudahan penggunaan, tanpa tabung ventilasi atau pengering yang tidak praktis untuk dirawat, logger ini sangat ideal untuk merekam ketinggian dan suhu air hingga kedalaman 30 kaki di sumur dangkal, sungai, danau, lahan basah air tawar (baja tahan karat), lahan basah air asin/payau, dan area pasang surut (titanium).
Features
- Lightning protection – no long signal wires, and electronics are shielded in a metal housing
- HOBOware Pro software provides easy conversion to accurate water level reading, fully compensated for barometric pressure, temperature, and water density
- Multiple-rate sampling allows faster sampling at critical times such as when pumping starts or stops
- Available in four depth ranges
- Ideal for use in wells, streams, lakes, wetlands, and tidal areas
- No-vent-tube design for easy, reliable deployment
- Available in stainless and titanium versions
- Durable ceramic pressure sensor
- 3-point NIST-traceable calibration certificate included
Spesifikasi
| Parameter | Specification |
|---|---|
| Operation Range | 0 to 207 kPa (0 to 30 psia); approx. 0–9 m (0–30 ft) water at sea level, or 0–12 m (0–40 ft) at 3,000 m (10,000 ft) altitude |
| Factory Calibrated Range | 69 to 207 kPa (10 to 30 psia), 0° to 40°C (32° to 104°F) |
| Burst Pressure | 310 kPa (45 psia) or 18 m (60 ft) water depth |
| Water Level Accuracy* | Typical: ±0.05% FS, 0.5 cm (0.015 ft)Maximum: ±0.1% FS, 1.0 cm (0.03 ft) |
| Raw Pressure Accuracy | ±0.3% FS (0.62 kPa / 0.09 psi max error) |
| Resolution | <0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water |
| Pressure Response Time (90%) | <1 second (depends on temperature response time) |
| Parameter | Specification |
|---|---|
| Real-time Clock | ±1 minute per month (0° to 50°C / 32° to 122°F) |
| Battery | 2/3 AA, 3.6V lithium, factory-replaceable |
| Battery Life | 5 years (1-minute or greater logging interval) |
| Memory | 64 KB non-volatile (approx. 21,700 pressure & temperature samples) |
| Logging Interval | 1 second to 18 hours; fixed or up to 8 user-defined intervals & durations |
| Launch Modes | Immediate start and delayed start |
| Offload Modes | Offload while logging; stop and offload |
| Battery Indication | Battery voltage viewable in status screen and loggable; low battery indication |
| Parameter | Specification |
|---|---|
| Weight | Stainless steel: ~210 g (7.4 oz)Titanium: ~140 g (4.8 oz) |
| Dimensions | 2.46 cm (0.97″) diameter, 15 cm (5.9″) length; 6.3 mm (0.25″) mounting hole |
| Wetted Materials | 316 stainless steel, Viton® O-rings, acetyl cap, ceramic sensor |
| Environmental Rating | IP68 |
