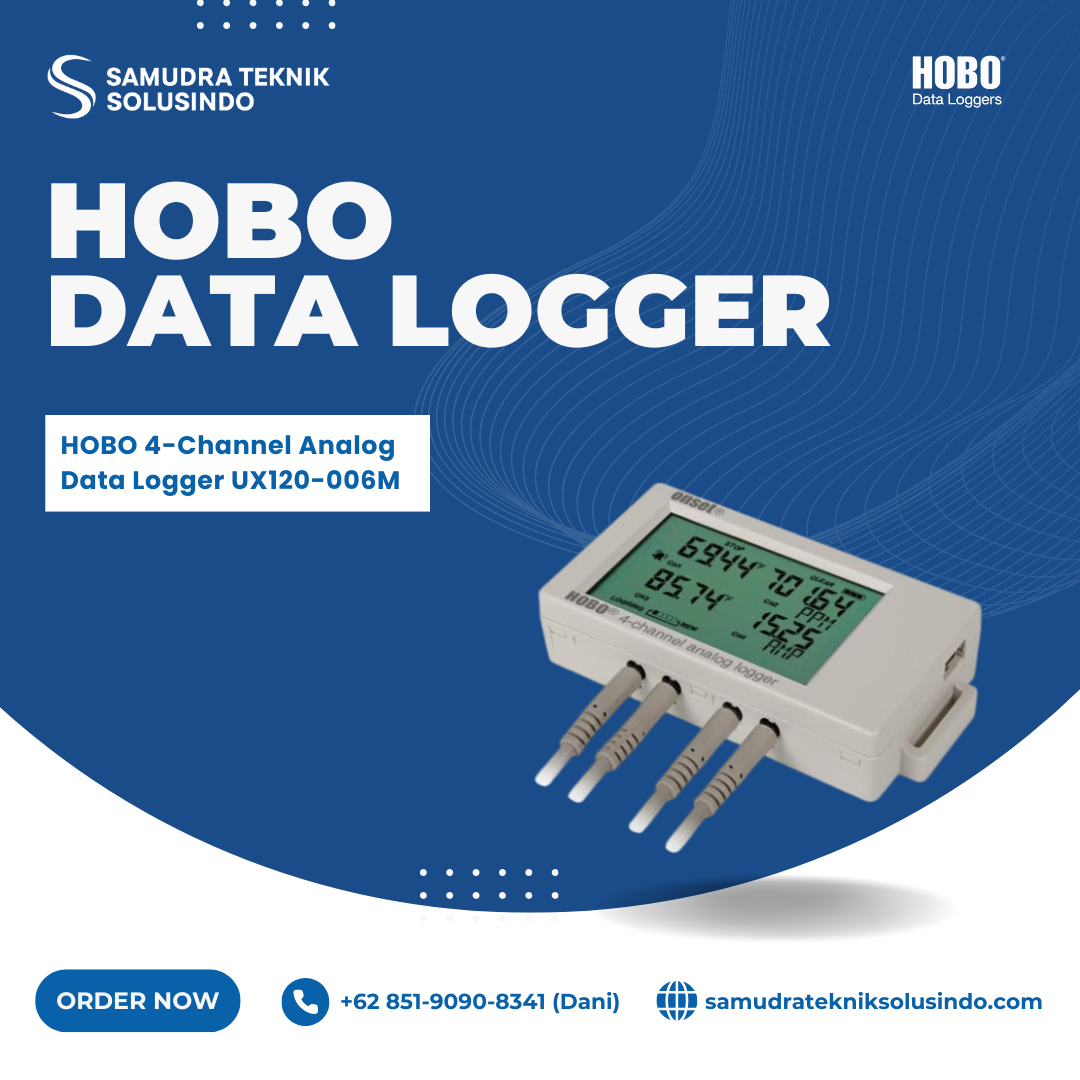

HOBO 4-Channel Analog Data Logger UX120-006M

Jika anda tertarik untuk membeli alat HOBO 4-Channel Analog Data Logger UX120-006M yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :

PT. Samudra Teknik Solusindo

Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : sales.stsolusindo@gmail.com
Telp : +62 851‑9090‑8341 (Dani)

Kategori: Data Logger Brand: HOBO

Deskripsi

Pencatat data layar LCD berkinerja tinggi, mendukung hingga empat sensor eksternal untuk mengukur dan merekam parameter seperti suhu, arus, tegangan, dan sensor pihak ketiga. Pencatat data ini sangat ideal untuk audit energi, studi komisioning gedung, penjadwalan peralatan, dan banyak lagi.

Features

Twice the accuracy of previous models with 16-bit resolution
Flexible support for a wide range of external sensors
LCD confirms logger operation and displays near real-time measurement data
Provides minimum, maximum, average, and standard deviation logging options
On-screen alarms notify you when a sensor reading exceeds set thresholds
Stores 1.9 million measurements for longer deployments between offloads
Compatible with HOBOware and HOBOware Pro software for logger setup and graphing & analysis

Spesifikasi

Logger w/Cable

Measurement Range:
4-20mA (w/CABLE-4-20MA) 0 to 20.1 mA
0 to 2.5 V (w/CABLE-2.5-STEREO)
0 to 5 V (w/CABLE-ADAP5)
0 to 10 V (w/ CABLE-ADAP10)
0 to 24 V (w/ CABLE-ADAP24)

Accuracy:
4-20mA ±0.001 mA ±0.2% of reading (w/CABLE-4-20MA)
±0.1 mV ±0.1% of reading (w/CABLE-2.5-STEREO)
±0.2 mV ±0.3% of reading (w/CABLE-ADAP5)
±0.4 mV ±0.3% of reading (w/ CABLE-ADAP10)
±1.0 mV ±0.3% of reading(w/ CABLE-ADAP24)

Resolution:
0.3 µA 4-20mA (w/CABLE-4-20MA)
40 µV (w/CABLE-2.5-STEREO)
80 µV (w/CABLE-ADAP5)
160 µV (w/ CABLE-ADAP10)
384 µV (w/ CABLE-ADAP24)

Logger

Operating range logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing);
Launch/readout: 0° to 50°C (32° to 122°F) per USB specification
Logging rate: 1 second to 18 hours, 12 minutes, 15 seconds
Logging modes: Normal, burst, or statistics
Memory modes: Wrap when full or stop when full
Start modes: Immediate, push button, date & time, or next interval
Stop modes: When memory full, push button, or date & time
Restart mode: Push button
Time accuracy: ±1 minute per month at 25°C (77°F), see Plot A
Battery life: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater
Battery type: Two AAA 1.5 V alkaline batteries, user replaceable
Memory: 4 MB (1.9 million measurements, maximum)
Download type: USB 2.0 interface
Full memory download time: approximately 1.5 minutes
LCD: LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size: 10.8 x 5.41 x 2.54 cm (4.25 x 2.13 x 1 in.)
Weight: 107.5 g (3.79 oz)
Environmental rating: IP50
