HOBO Water Level Data Logger Deluxe Kit (30’)
Jika anda tertarik untuk membeli alat HHOBO Water Level Data Logger Deluxe Kit (30’) yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :
PT. Samudra Teknik Solusindo
Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : sales.stsolusindo@gmail.com
Telp : +62 851‑9090‑8341 (Dani)
Deskripsi
HOBO Water Level Data Logger Deluxe Kit (30’) Menggabungkan pengukuran ketinggian air dengan akurasi tinggi dengan kenyamanan yang tidak biasa, kit hemat uang ini mencakup semua yang diperlukan untuk segera memulai pencatatan. Ideal untuk memantau ketinggian dan suhu air di sumur, sungai, danau, dan lahan basah air tawar, serta tekanan barometrik.

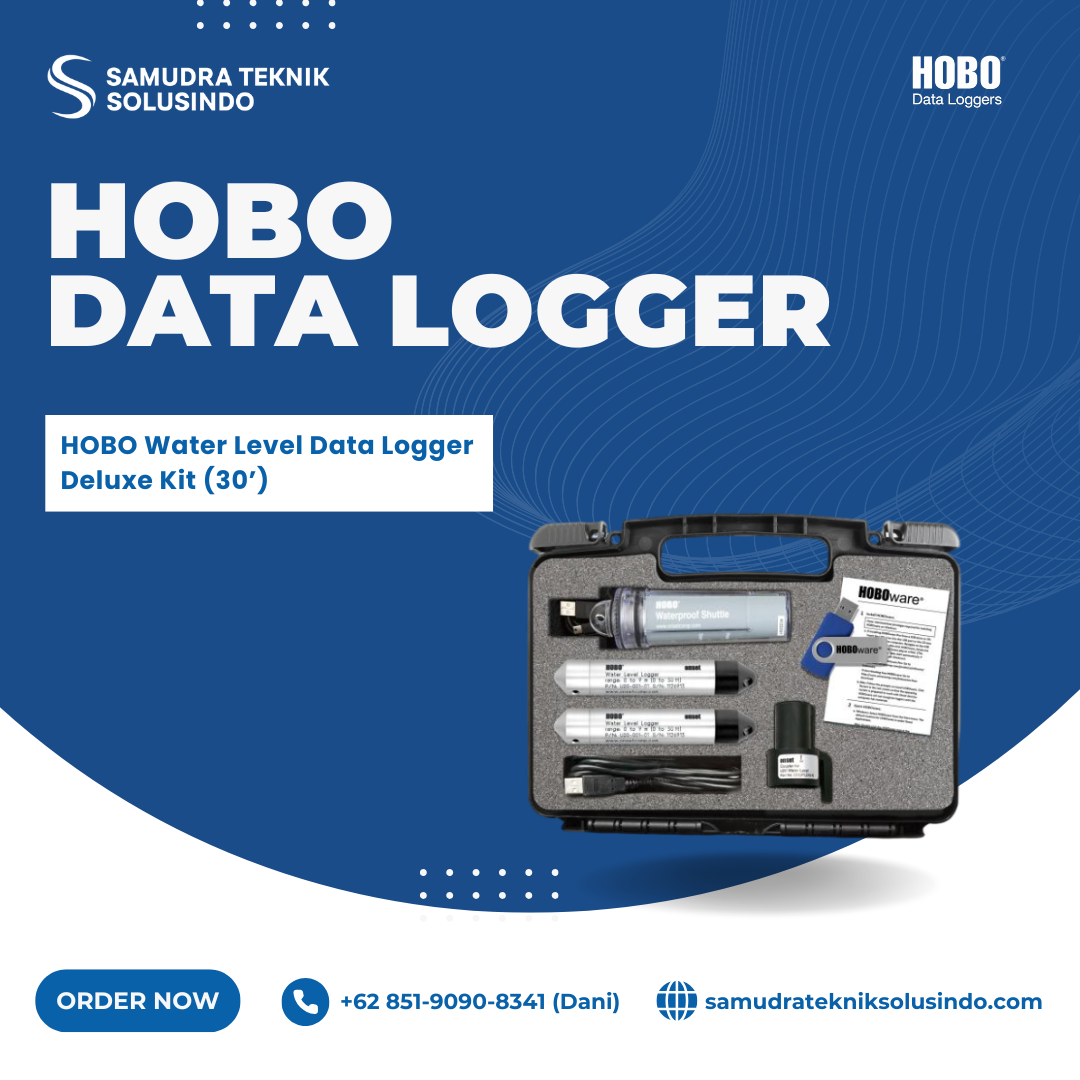

This kit includes:
- U20-001-01 HOBO data logger (30′ range)
- U20-001-04 HOBO data logger (13′ range) for barometric pressure
- U-DTW-1 HOBO waterproof shuttle with 5 interchangeable couplers
- U20-CASE-1 carrying case
- HOBOware Pro software
Like other HOBO Water Level Loggers, the 30-foot version offers exceptional value and ease-of-use, with no cumbersome vent tubes or desiccants to maintain.
Features
- Lightning protection; no long signal wires, and electronics are shielded in stainless-steel housing
- HOBOware Pro software provides easy conversion to accurate water level reading, fully compensated for barometric pressure, temperature, and water density
- Multiple-rate sampling allows faster sampling at critical times such as when pumping starts or stops
- Available in four depth ranges
- Ideal for use in wells, streams, lakes, wetlands, and tidal areas
- No-vent-tube design for easy reliable deployment
- Durable ceramic pressure sensor
Spesifikasi
| Parameter | Specification |
|---|---|
| Operation Range | 0 to 207 kPa (0 to 30 psia); approx. 0–9 m (0–30 ft) water at sea levelor 0–12 m (0–40 ft) at 3,000 m (10,000 ft) altitude |
| Factory Calibrated Range | 69 to 207 kPa (10 to 30 psia), 0°C to 40°C (32°F to 104°F) |
| Burst Pressure | 310 kPa (45 psia) or 18 m (60 ft) depth |
| Water Level Accuracy* | Typical: ±0.05% FS, 0.5 cm (0.015 ft)Maximum: ±0.1% FS, 1.0 cm (0.03 ft) |
| Raw Pressure Accuracy | ±0.3% FS, 0.62 kPa (0.09 psi) maximum error |
| Resolution | <0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water |
| Pressure Response Time | <1 second (90%) |
| Thermal Response Time (90%)† | Approx. 10 minutes in water (for full temperature compensation of pressure sensor) |
| Parameter | Specification |
|---|---|
| Operation Range | -20°C to 50°C (-4°F to 122°F) |
| Accuracy | ±0.37°C at 20°C (±0.67°F at 68°F) |
| Resolution (10-bit) | 0.1°C at 20°C (0.18°F at 68°F) |
| Response Time (90%) | 3.5 minutes in water (typical) |
| Stability (Drift) | ±0.1°C (±0.18°F) per year |
| Parameter | Specification |
|---|---|
| Real-time Clock | ±1 minute per month (0°C to 50°C / 32°F to 122°F) |
| Battery | 2/3 AA, 3.6V Lithium, factory-replaceable |
| Battery Life | 5 years (with 1-minute or greater logging interval) |
| Memory | 64 KB non-volatile memory (approx. 21,700 pressure & temperature samples) |
| Logging Interval | 1 second to 18 hours; fixed-rate or up to 8 user-defined intervals |
| Launch Modes | Immediate start and delayed start |
| Offload Modes | Offload while logging; stop and offload |
| Battery Indication | Viewable in status screen; optionally logged; low battery indicator |
| Parameter | Specification |
|---|---|
| Dimensions | Diameter: 2.46 cm (0.97 inches)Length: 15 cm (5.9 inches)Mounting hole: 6.3 mm (0.25 inches) |
| Weight | Approximately 210 g (7.4 oz) |
| Wetted Materials | 316 stainless steel, Viton® o-rings, acetyl cap, ceramic sensor |
| Shock/Drop | Sensitive to shocks. Handle with care. Always use protective packaging when shipping. |
| Environmental Rating | IP68 |
