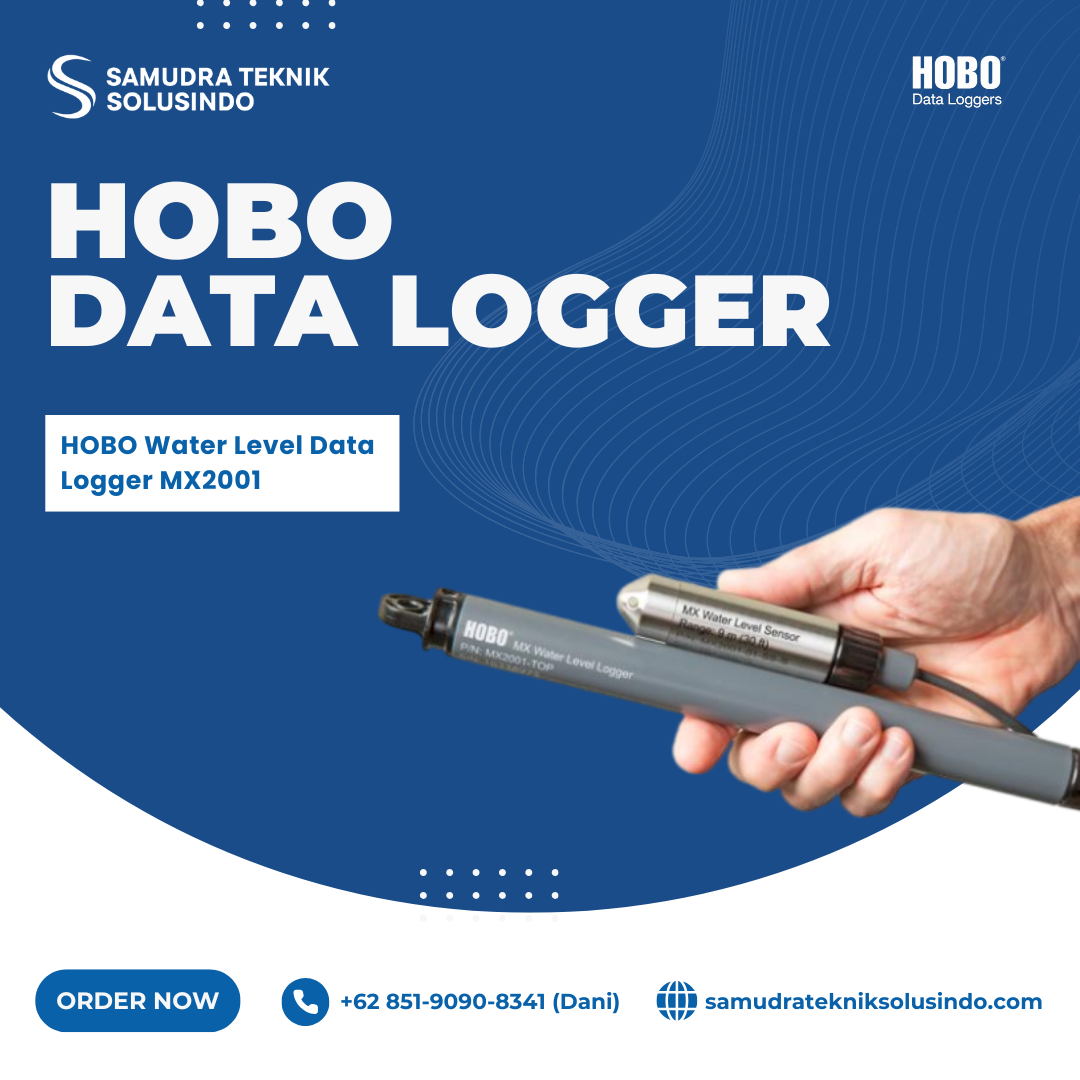

HOBO Water Level Data Logger MX2001
Jika anda tertarik untuk membeli alat HOBO Water Level Data Logger MX2001 yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :
PT. Samudra Teknik Solusindo
Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : sales.stsolusindo@gmail.com
Telp : +62 851‑9090‑8341 (Dani)
Deskripsi
Pencatat data ketinggian air ini menjadi yang pertama di industri dengan pengaturan dan pengunduhan nirkabel berbasis Bluetooth. Alat ini menyederhanakan serta mengurangi biaya pengumpulan data lapangan secara signifikan.
Pengguna dapat mengakses data ketinggian dan suhu air secara nirkabel melalui ponsel, tablet, atau komputer Windows. Akses ini tersedia melalui aplikasi HOBOconnect gratis dengan akurasi yang sangat tinggi. Perangkat ini terdiri dari unit top-end dan sensor ketinggian air yang kami jual dalam satu paket. Anda perlu menggunakan kabel pembacaan langsung untuk menyambungkannya ke sistem.
Kami menyediakan kabel dengan panjang 0,2 hingga 500 meter untuk digunakan pada berbagai jenis sumur. Tambahkan kabel dari bagian Item Kompatibel atau kunjungi halaman produk Kabel Baca Langsung.
Features
- Wireless data offload to mobile devices or Windows computers via Bluetooth
- Integrated barometric pressure sensor enables direct water level readout
- Direct-read cable connects sensor to top-end logger/transmitter
- The cable includes Kevlar strength member
- Cables are interchangeable so loggers are easy to redeploy in future applications
- The logger and sensor add 0.39 meters to the length of the cable
- Cable length can vary up to 3% from the length ordered
- The 1, 2, 5, 10, 15, 30 and 60 meter cable lengths are in stock; custom cable lengths have a 1 to 2 week lead time
- Reference water level can be entered at the start of the deployment
- Use HOBOconnect for setup, data viewing, and data sharing
- Powered by two user-replaceable AA batteries in the top-end unit
- Several logging modes: normal, multi-rate logging, and event-triggered burst-logging
- Durable ceramic sensor
- Available with stainless steel or titanium sensor ends
- 3-point NIST-traceable calibration certificate included for the water pressure sensor
Spesifikasi
| Model | MX2001-01 | MX2001-02 | MX2001-03 | MX2001-04 |
|---|---|---|---|---|
| Operation Range | 0–207 kPa (0–9 m) | 0–400 kPa (0–30.6 m) | 0–850 kPa (0–76.5 m) | 0–145 kPa (0–4 m) |
| 0–30 psia (0–30 ft) | 0–58 psia (0–100 ft) | 0–123.3 psia (0–251 ft) | 0–21 psia (0–13 ft) | |
| Factory Calibrated | 69–207 kPa | 69–400 kPa | 69–850 kPa | 69–145 kPa |
| 10–30 psia | 10–58 psia | 10–123.3 psia | 10–21 psia | |
| Burst Pressure | 310 kPa (18 m) | 500 kPa (40.8 m) | 1,200 kPa (112 m) | 310 kPa (18 m) |
| 45 psia (60 ft) | 72.5 psia (134 ft) | 174 psia (368 ft) | 45 psia (60 ft) | |
| Water Level Accuracy | ±0.05% FS (0.5 cm) | ±0.05% FS (1.5 cm) | ±0.05% FS (3.8 cm) | ±0.075% FS (0.3 cm) |
| Max ±0.1% FS (1.0 cm) | Max ±0.1% FS (3.0 cm) | Max ±0.1% FS (7.6 cm) | Max ±0.15% FS (0.6 cm) | |
| Raw Pressure Accuracy | ±0.3% FS (0.62 kPa) | ±0.3% FS (1.20 kPa) | ±0.3% FS (2.55 kPa) | ±0.3% FS (0.43 kPa) |
| Resolution | <0.02 kPa (0.21 cm) | <0.04 kPa (0.41 cm) | <0.085 kPa (0.87 cm) | <0.014 kPa (0.14 cm) |
| Response Time (90%) | <1 second | <1 second | <1 second | <1 second |
| Parameter | Keterangan |
|---|---|
| Operation Range | 66–107 kPa (9.57–15.52 psia) |
| Temperature Calibrated | -20 to 50°C (-4 to 122°F) |
| Accuracy | ±0.2 kPa (±0.5% FS max) |
| Water Level Accuracy | ±0.075% FS (0.3 cm); Max ±0.15% FS (0.6 cm) |
| Resolution | <0.01 kPa |
| Response Time | <1 second |
| Drift (Stability) | <0.01 kPa per year |
| Parameter | Keterangan |
|---|---|
| Operation Range | -20°C to 50°C (-4°F to 122°F) |
| Accuracy | ±0.44°C (±0.79°F) |
| Resolution | 0.1°C at 25°C (0.18°F at 77°F) |
| Response Time (90%) | 5 minutes in water |
| Stability (Drift) | 0.1°C per year (0.18°F per year) |
| Parameter | Keterangan |
|---|---|
| Logger Operation Range | -20° to 50°C |
| Radio Power | 1 mW (0 dBm) |
| Transmission Range | ~30.5 m (100 ft) line-of-sight |
| Bluetooth | BLE (Bluetooth Smart®) |
| Logging Rate | 1 s to 18 hours |
| Memory | 256 KB (30,000 measurements) |
| Battery | 2x AA alkaline; ~1 year @ 1-min interval |
| Full Download Time | ~2 minutes |
| Top End Dimensions | Ø 2.54 cm x 28.9 cm; Mount hole 7.6 mm |
| Sensor Dimensions | Ø 2.54 cm x 9.91 cm |
| Cable Toleransi Panjang | -0% to +3% + 10 cm |
| Weight (Air / Water) | SS: 141.4 g / 93.4 g; Ti: 80 g / 37 g |
| Materials | SS/Ti housing, Viton/Buna-N, ceramic sensor, PVC/PUR |
| Environmental Rating | Top: IP67; Sensor: IP68 |
