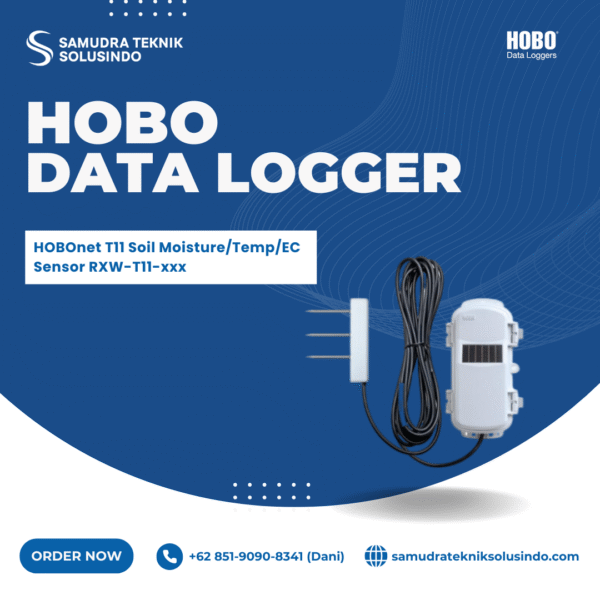

HOBOnet T11 Soil Moisture/Temp/EC Sensor
Jika anda tertarik untuk membeli alat HOBOnet T11 Soil Moisture/Temp/EC Sensor yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :
PT. Samudra Teknik Solusindo
Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : sales.stsolusindo@gmail.com
Telp : +62 851‑9090‑8341 (Dani)
Deskripsi
Sensor nirkabel ini bekerja dengan sistem HOBOnet untuk mengukur kelembapan tanah (kadar air volumetrik), suhu tanah, dan konduktivitas listrik. Desainnya yang tahan lama memungkinkan sensor bertahan hingga 10 tahun di lapangan. Ujung probe baja tahan karat yang diasah memudahkan pemasangan, bahkan di tanah keras, dan volume pengaruh yang lebih besar meningkatkan akurasi. Teknologi kapasitansi 70MHz membantu meminimalkan efek salinitas dan tekstur tanah.
Sistem HOBOnet menyediakan jaringan sensor nirkabel yang hemat biaya dan dapat diskalakan untuk pemantauan kondisi lapangan melalui web. Anda dapat memantau beberapa titik dengan satu sistem, tanpa perlu kabel panjang yang bisa mengganggu atau menarik petir. Sensor ini mudah dihubungkan ke jaringan, dan pengguna dapat mengakses data melalui HOBOlink®, platform cloud dari Onset.
Kami menyarankan Anda memakai Klip Verifikasi untuk memeriksa pengoperasian dan akurasi sensor HOBOnet T11 dan T12. Memasang klip ke sensor akan menunjukkan tingkat kelembapan tanah yang diketahui. Anda tidak perlu menguji sensor langsung di tanah, sehingga bisa menghindari proses pengeringan sampel tanah di oven.
Features
Sensor Features
- Soil moisture (volumetric water content), soil temperature, and electrical conductivity measurements with one device
- Sensor lasts up to 10 years in the field
- Largest volume of influence (1010 mL) relative to sensor size, resulting in more accurate soil moisture measurements
- Easy installation with sharpened stainless-steel probes that are more resistant to damage/deterioration
- Less sensor-to-sensor variability
Wireless Features
- 900 MHz wireless mesh self-healing technology
- 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
- Up to 50 wireless sensors or 336 data channels per HOBO RX station
- Simple button-push to join the HOBOnet wireless network
- Onboard memory to ensure no data loss
- Powered by rechargeable AA batteries and built-in solar panel
Spesifikasi
Soil Moisture (Volumetric Water Content – VWC)
| Parameter | Specification |
|---|---|
| Measurement Range | 0.00 to 0.70 m³/m³ in mineral soils |
| Accuracy | ±0.030 m³/m³ (±3%) typical from 0 to 50°C (32 to 122°F) |
| ±0.020 m³/m³ (±2%) with soil-specific calibration | |
| Resolution | 0.001 m³/m³ |
| Dielectric Frequency | 70 MHz |
Temperature
| Parameter | Specification |
|---|---|
| Measurement Range | -40 to 60°C (-40 to 140°F) |
| Accuracy | ±1.0°C (1.8°F) from -40 to 0°C (-40 to 32°F) |
| ±0.5°C (0.9°F) from 0 to 60°C (32 to 140°F) | |
| Resolution | 0.1°C (0.18°F) |
Wireless Mote
| Parameter | Specification |
|---|---|
| Operating Temperature | Sensor: -40 to 60°C (-40 to 140°F) |
| Mote: -25 to 60°C (-13 to 140°F) with NiMH batteries | |
| -40 to 70°C (-40 to 158°F) with lithium batteries | |
| Radio Power | 12.6 mW (+11 dBm), non-adjustable |
| Transmission Range | 457.2 m (1,500 ft) line-of-sight @ 1.8 m (6 ft) height |
| 609.6 m (2,000 ft) line-of-sight @ 3 m (10 ft) height | |
| Wireless Standard | IEEE 802.15.4 |
| Operating Frequencies | RXW-T11-900: 904–924 MHz |
| RXW-T11-868: 866.5 MHz | |
| RXW-T11-921: 921 MHz | |
| RXW-T11-922: 916–924 MHz | |
| Modulation | OQPSK (Offset Quadrature Phase Shift Keying) |
| Data Rate | Up to 250 kbps (non-adjustable) |
| Duty Cycle | <1% |
| Max Number of Motes | Up to 50 wireless sensors or 336 data channels per HOBO RX station |
Logging & Power
| Parameter | Specification |
|---|---|
| Logging Rate | 1 minute to 18 hours |
| Number of Data Channels | 3 |
| Battery Type | 2x AA 1.2V NiMH rechargeable (solar powered) or 2x AA 1.5V lithium batteries |
| Battery Life (NiMH) | 3–5 years typical (-20 to 40°C) with good sun exposure |
| Battery Life (Lithium) | ~1 year typical use |
| Memory | 16 MB |
Dimensions & Weight
| Component | Size / Weight |
|---|---|
| Sensor Size | 7.47 x 9.4 x 2.39 cm (2.94 x 3.7 x 0.94 in) |
| Sensor Needle Length | 5.4 cm (2.13 in) |
| Sensor Needle Diameter | 0.32 cm (0.13 in) |
| Cable Length | 5 m (16.4 ft) |
| Mote Size | 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 in) |
| Sensor + Cable Weight | 245 g (8.64 oz) |
| Mote Weight | 223 g (7.87 oz) |
Materials & Environmental Protection
| Component | Material / Rating |
|---|---|
| Sensor | ASA plastic body, polyurethane epoxy filling, stainless steel pins |
| Cable | PVC, UV resistant and rodent repellent |
| Mote | PCPBT with silicone rubber seal |
| Environmental Rating | Mote: IP67, NEMA 6 |
