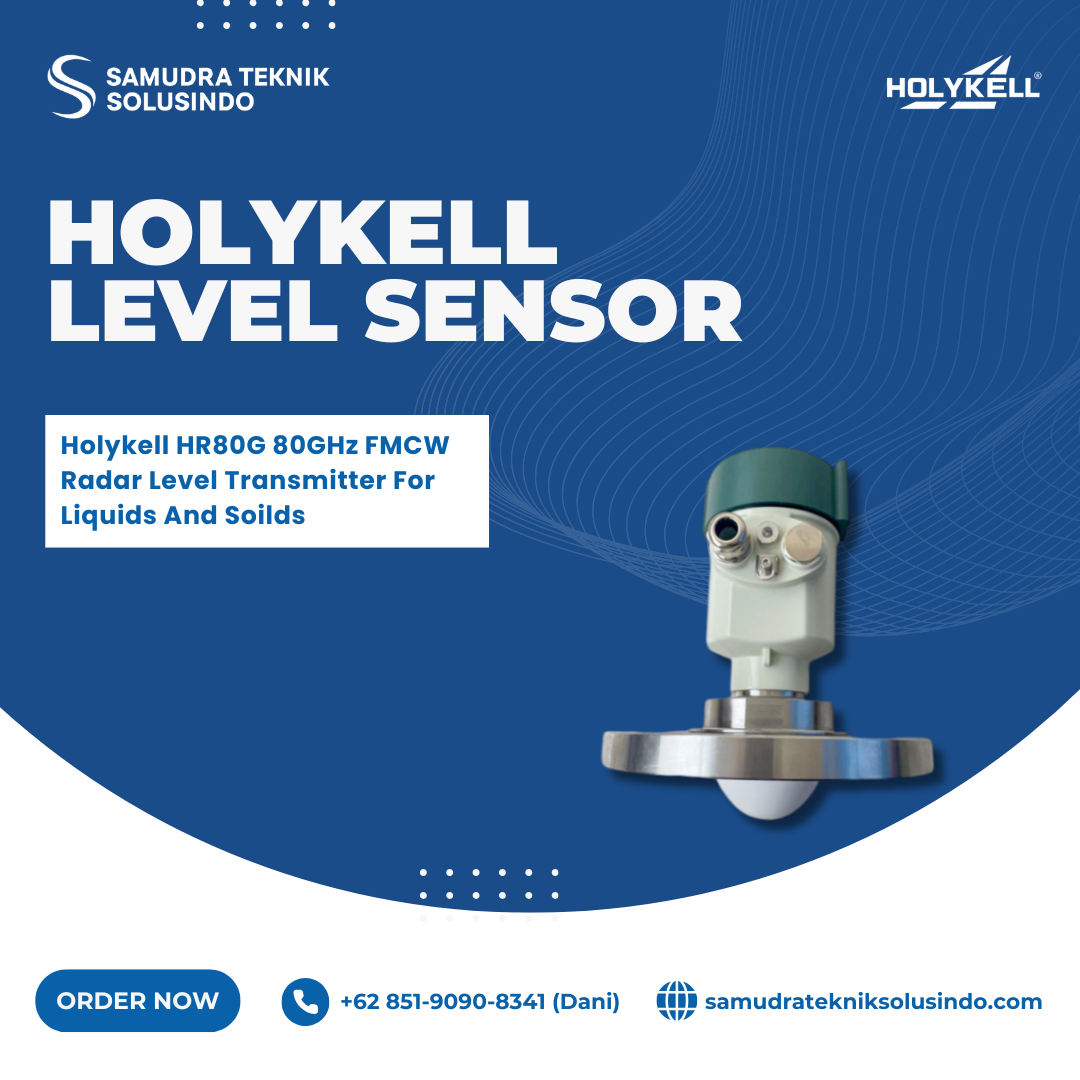

Holykell HR80G 80GHz FMCW Radar Level Transmitter For Liquids And Soilds
Jika anda tertarik untuk membeli alat Holykell HR80G 80GHz FMCW Radar Level Transmitter For Liquids And Soilds yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :
PT. Samudra Teknik Solusindo
Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : sales.stsolusindo@gmail.com
Telp : +62 851‑9090‑8341 (Dani)
Deskripsi
Holykell HR80G 80GHz FMCW Radar Level Transmitter For Liquids And Soilds dikembangkan berdasarkan teknologi FMCW. Produk ini memiliki daya tembus kuat dan lebar pita frekuensi tinggi 76–81GHz. Sistem ini tetap bekerja stabil tanpa pengaruh suhu, debu, atau uap. Pengguna sering memakai transmiter ini untuk pengukuran cairan, padatan, dan bubuk.
Spesifikasi
| Parameter | Specification |
|---|---|
| Model | HR80G |
| Frequency | 76–81 GHz, 5 GHz FMCW bandwidth |
| Measuring Range | 0.3–60 m (For solids)0.8–30 m (For liquids)0.6–120 m (For solids and liquids) |
| Measurement Accuracy | ±1 mm; ±2 mm |
| Beam Angle | 3° / 6° |
| Dielectric Constant Range | ≥ 2 |
| Power Supply | 18–28 V DC; 220 V AC |
| Communication | MODBUS; HART (Optional) |
| Signal Output | 4–20 mA or RS485 |
| Field Operation / Programming | 128 × 64 dot matrix display; 4 buttons; PC software |
| Enclosure | Aluminum alloy; Stainless steel |
| Antenna Type | Lens antenna / Anti-corrosive antenna / Flange isolated by quartz |
| Process Temperature / Humidity | –40°C to 85°C / ≤95% RH |
| Process Pressure | –0.1 to 1.6 MPa |
| Product Size | Ø100 × 270 mm |
| Cable Entry | M20 × 1.5 |
| Recommended Cable | AWG18 or 0.75 mm² |
| Protection Class | IP67 |
| Installation Method | Thread or flange |
| Weight | 2.480 kg / 2.895 kg |
