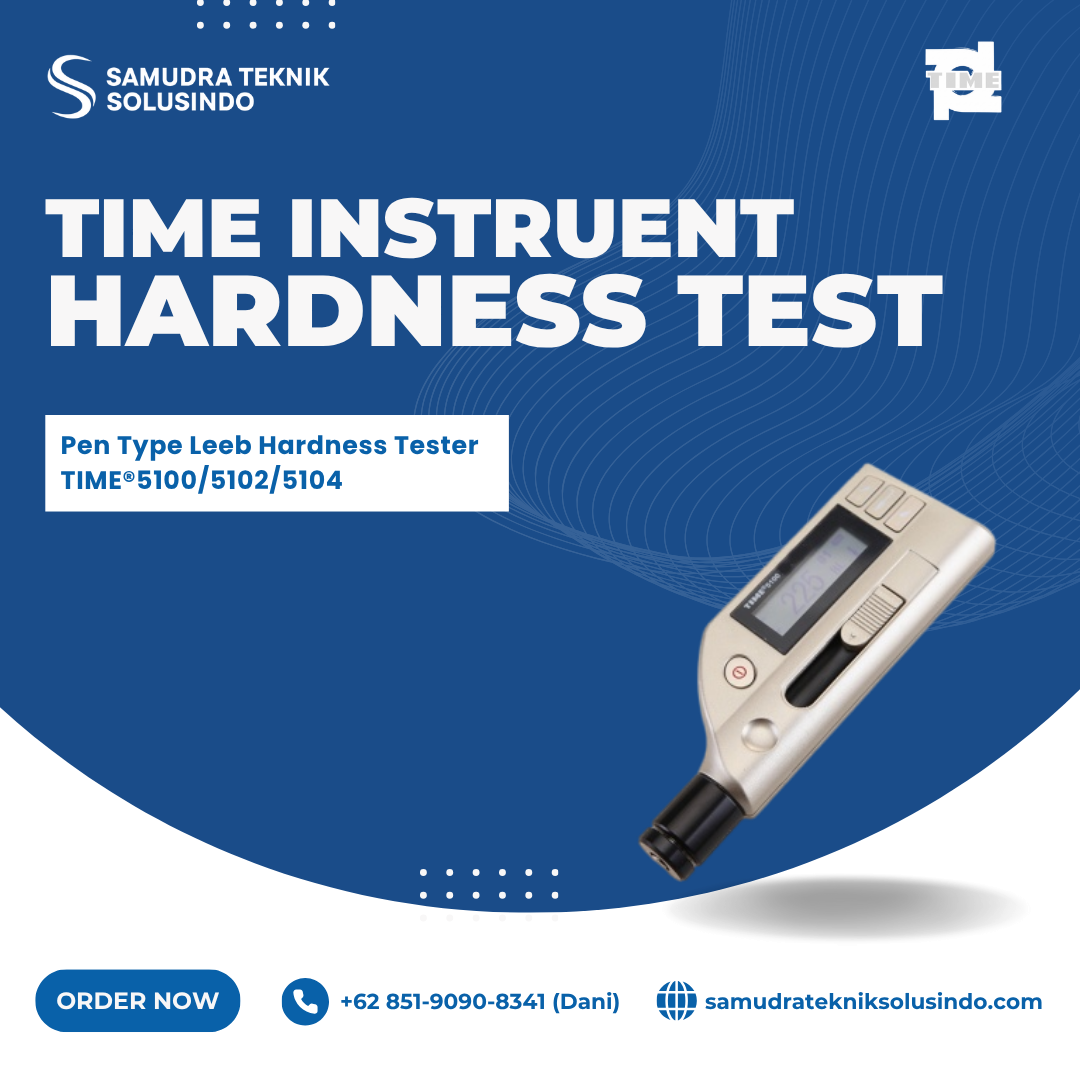

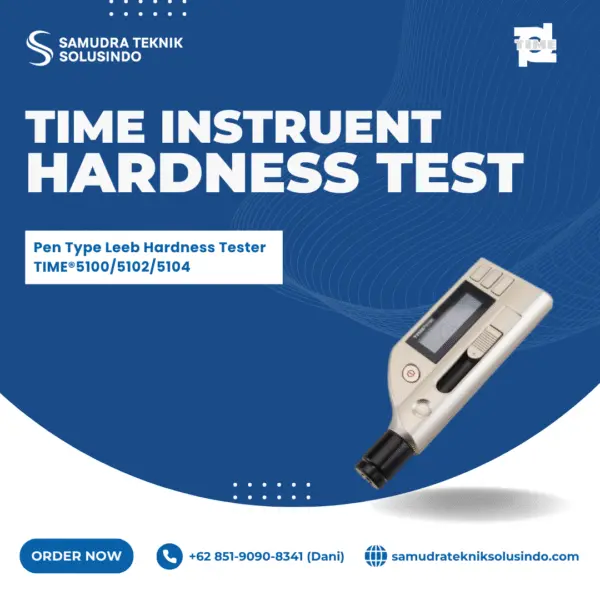

Pen Type Leeb Hardness Tester TIME®5100/5102/5104
Jika anda tertarik untuk membeli alat Pen Type Leeb Hardness Tester TIME®5100/5102/5104 yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :
PT. Samudra Teknik Solusindo
Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : sales.stsolusindo@gmail.com
Telp : +62 851‑9090‑8341 (Dani)
Deskripsi
Features
- Light Mini Unit with simple menu, easy and convenient to use
- Conversion of hardness scales(HL, HV, HB, HRC, HRB and HS)
- USB interface to connect the PC, assisted by Software Dataview TH51X (especially for TH51X series Hardness Test) with both online measurement and offline data analysis mode：curve chart, data sheet, setting of tolerance limit and data report are available.
- Connected to Printer by RS 232 and test values can be printed directly
- Measuring Direction:Any direction 360°
- Automatic identification of impact test direction
- Memory of 270 data in 9 group
- Backlight for convenience in darkness
- Upper /lower limits setting
- AAA 1.5V battery, whose capacity shown in display
- Auto power off
- TIME®5100: integrated with D impact device for the majority of hardness testing requirements
- TIME®5102: integrated with C impact device for hardness testing on thin, light and surface hardened components
- TIME®5104: integrated with DL impact device for hardness testing of deep grooves and tooth surface
Spesifikasi
| Model | TIME ® 5100 | TIME ® 5102 | TIME ® 5104 |
| Impact device | D integrated | C integrated | DL integrated |
| Hardness scales | HLD, HB, HRC, HRB,HV, HS | HLC, HB, HRC, HRB, HV, HS | HLDL, HB, HRC, HRB,HV, HS |
| Accuracy | ±6HLD(760 ±30HLD) | ±12HLC | ±12HLD |
| Memory | 270 average readings in 9 group files | ||
| Output | RS232 to printer | ||
| Min. surface roughness of work piece | 1.6μm ( Ra) | 0.4μm ( Ra) | 1.6μm ( Ra) |
| Max. work piece hardness | 960HLD | 960HLC | 950HLDL |
| Min. radius of work piece (convex/concave) | Rmin = 50mm (with support ring Rmin=10mm) | Rmin=11mm (with support ring ) | Rmin = 10mm (with support ring Rmin=10mm) |
| Min. work piece weight | 2~5kg on stable support0.05~2kg with compact coupling | 0.5~1.5kg on stable support0.02~0.5kg with compact coupling | 2~5kg on stable support0.05~2kg with compact coupling |
| Min. work piece thickness coupled | 5mm | 1mm | 5mm |
| Min. thickness of hardened layers | 0.8mm | 0.2mm | 0.8mm |
| Indentation depth | Impact devices data | ||
| Continuous working time | 8h (without backlight) | ||
| Power | AAA 1.5V batteries | ||
| Operating temperature | 0~40℃ | ||
| Dimensions (mm) | 155×55×25 | 160×60×25 | 215×60×25 |
| Weight (g) | 180 | ||
