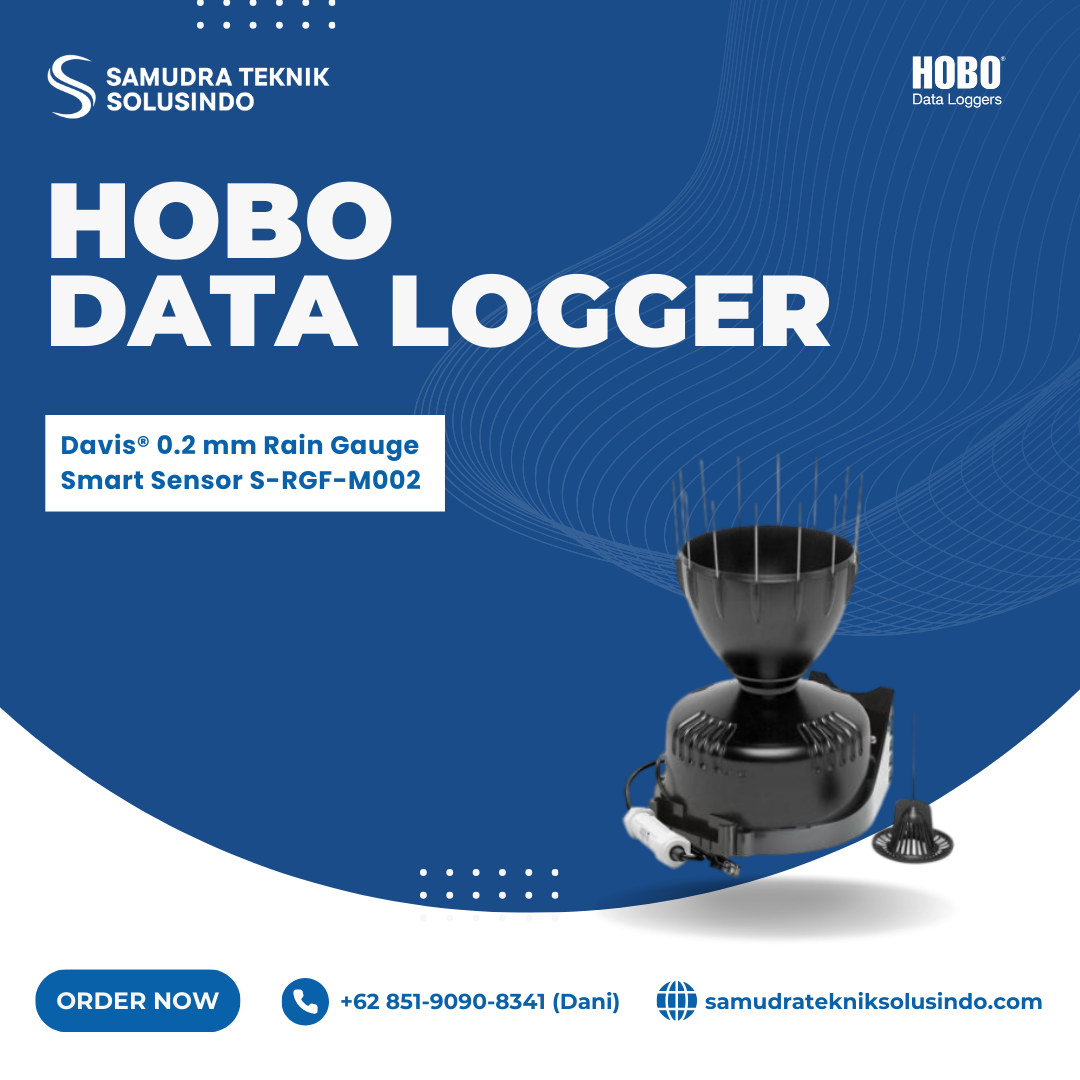

Davis® 0.2 mm Rain Gauge Smart Sensor S-RGF-M002

Jika anda tertarik untuk membeli alat Davis® 0.2 mm Rain Gauge Smart Sensor S-RGF-M002 yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :

PT. Samudra Teknik Solusindo

Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : sales.stsolusindo@gmail.com
Telp : +62 851‑9090‑8341 (Dani)

Kategori: Data Logger Brand: HOBO

Deskripsi

Sensor penakar hujan ini menggunakan desain AeroCone® untuk meningkatkan akurasi pengukuran saat angin kencang. Produsen membuatnya dari plastik ABS yang distabilkan dengan UV agar tahan lama dan efisien dalam mengukur curah hujan. Sensor ini mendukung semua stasiun cuaca HOBO dan juga tersedia dalam versi nirkabel untuk Sistem Pemantauan Lapangan HOBOnet.

Features

Streamlined design reduces the amount of missed rain capture in windy conditions, resulting in more accurate rainfall data
Improved debris screen locks in to ensure it remains in place during high winds
16.5 cm (6.5”) collector opening meets World Meteorological Organization (WMO) guidelines

Spesifikasi

Measurement Range	0 to 10.2 cm (0 to 4 in.) per hour, maximum 4,000 tips per logging interval
Accuracy	±4.0%, ±1 rainfall count between 0.2 and 50.0 mm (0.01 and 2.0 in.) per hour; ±5.0%, ±1 rainfall count between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour
Resolution	0.01 in. (S-RGC-M002) or 0.2 mm (S-RGF-M002)
Operating Temperature Range	0° to 50°C (32° to 122°F), survival -40° to 75°C (-40° to 167°F)
Environmental Rating	Weatherproof
Housing	UV-stabilized ABS plastic
Mechanism	Tipping spoon with magnetic reed switch pivots on metal shaft
Dimensions	16.5 cm opening diameter (6.5 in.) x 24 cm (9.5 in.) high; 214 cm² (33.2 in.²) collection area
Weight	1.2 kg (2.7 lbs)
Bits per Sample	12
Number of Data Channels*	1
Measurement Averaging	No
Cable Length Available	2 m (6.6 ft)
Length of Smart Sensor Network Cable*	0.5 m (1.6 ft)
	The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
