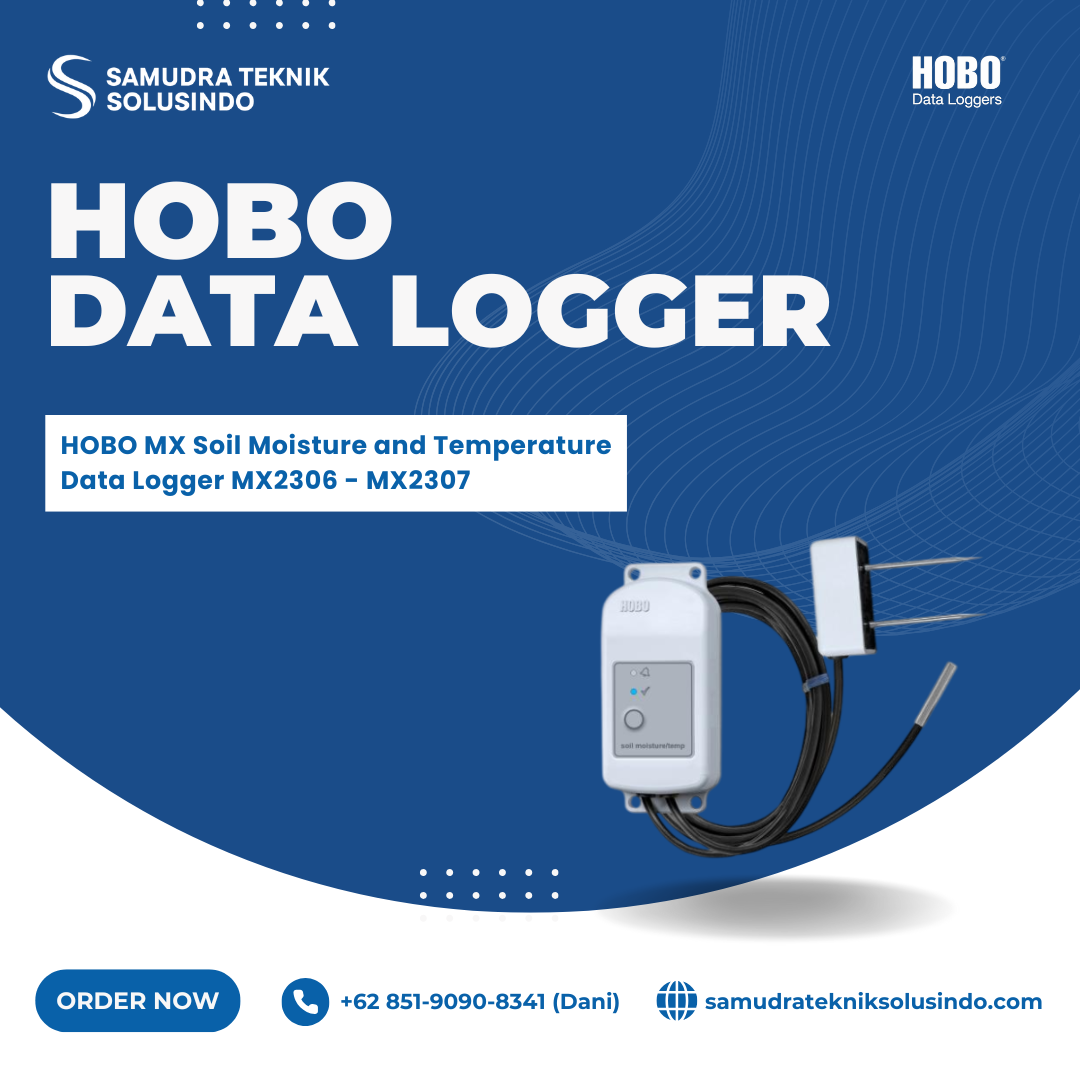

HOBO MX Soil Moisture and Temperature Data Logger
Jika anda tertarik untuk membeli alat HOBO MX Soil Moisture and Temperature Data Logger yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :
PT. Samudra Teknik Solusindo
Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : sales.stsolusindo@gmail.com
Telp : +62 851‑9090‑8341 (Dani)
Deskripsi
Pencatat kelembapan tanah ini berbiaya rendah dan memiliki integrasi penuh dengan Bluetooth nirkabel. Dua model tersedia: HOBO MX2306 untuk kelembapan tanah dan HOBO MX2307 untuk kelembapan serta suhu. Alat ini ideal untuk peneliti dan petani yang ingin menghemat air, meningkatkan hasil panen, mengurangi limpasan, dan menjaga ekosistem.
Pengguna hanya perlu ponsel, tablet, atau laptop Windows dengan aplikasi HOBOconnect dari Onset. Mereka dapat mengatur dan mengunduh data secara nirkabel saat berada dalam jarak 100 kaki dari logger. Untuk area dalam ruangan seperti rumah kaca, pengguna dapat menambahkan MX Gateway untuk mengakses data jarak jauh melalui HOBOlink berbasis cloud.
Features
- Ready to deploy, with pre-attached sensors
- Easy configuration and data offload with the free HOBOconnect app
- Durable TEROS 10 soil moisture sensor lasts over 10 years in the field
- For use in both mineral soils and soilless media
- Sturdy, sharp stainless-steel spikes for easy installation and better soil contact
- Option to view data in Percent of Field Capacity
Spesifikasi
Soil Moisture & Temperature Sensor (MX2306 / MX2307) Specifications
Soil Moisture (Volumetric Water Content – VWC)
| Parameter | Specification |
|---|---|
| Measurement Range* | 0.00 to 0.64 m³/m³ in mineral soils 0.00 to 0.70 m³/m³ in soilless media |
| Accuracy | ±0.031 m³/m³ in mineral soils (EC <8 dS/m) ±0.051 m³/m³ in soilless media |
| Resolution | 0.001 m³/m³ |
| Dielectric Measurement Freq. | 70 MHz |
Temperature Sensor (MX2307 Only)
| Parameter | Specification |
|---|---|
| Measurement Range | -40 to 100°C (-40 to 212°F) Immersion in fresh water up to 50°C (122°F) for one year |
| Accuracy | ±0.25°C from -40 to 0°C ±0.2°C from 0 to 70°C ±0.25°C from 70 to 100°C |
| ±0.45°F from -40 to 32°F ±0.36°F from 32 to 158°F ±0.45°F from 158 to 212°F |
|
| Resolution | 0.04°C / 0.072°F |
| Drift | <0.01°C per year / 0.018°F per year |
| Response Time | 3 min in air @1 m/s 20 sec in stirred water 4 min in air with RS3-B Shield |
Logger Specifications
| Parameter | Specification |
|---|---|
| Operating Range | -25° to 60°C / -13° to 140°F |
| Radio Power | 1 mW / 0 dBm |
| Transmission Range | ~30.5 m (100 ft) line-of-sight |
| Wireless Standard | Bluetooth Low Energy (Bluetooth Smart) |
| Logging Rate | 1 second to 18 hours |
| Logging Modes | Fixed interval (normal, statistics) or burst |
| Memory Modes | Wrap when full or stop when full |
| Start Modes | Immediate, push button, date & time, or next interval |
| Stop Modes | Memory full, push button, date & time, or set duration |
| Time Accuracy | ±1 minute/month (0° to 50°C / 32° to 122°F) |
| Battery Type | 2/3 AA 3.6 V lithium (user-replaceable) |
| Battery Life | 2 years (1-min interval, Bluetooth On) 5 years (1-min interval, Bluetooth Off) |
| Memory Capacity | 110,000 measurements max (472 kB) |
| Download Time | ~60 seconds (longer if device is far from logger) |
Physical Dimensions
| Component | Dimensions |
|---|---|
| Logger Housing | 10.8 x 5.08 x 2.24 cm (4.25 x 2.0 x 0.88 in.) |
| Soil Moisture Sensor | 7.5 x 5.1 x 2.4 cm (2.95 x 2.02 x 0.95 in.) |
| Sensor Needle Length | 5.4 cm (2.13 in.) |
| Sensor Needle Diameter | 0.32 cm (0.13 in.) |
| Temperature Sensor Diameter | 0.53 cm (0.21 in.) |
| Sensor Cable Length | 2 m (6.56 ft) |
| Weight | MX2306: 229 g (80 oz) MX2307: 267 g (94 oz) |
Material & Environment
| Component | Material/Specification |
|---|---|
| Logger | Acetal body, silicone gasket, stainless steel screws |
| Soil Moisture Sensor | ASA plastic body with polyurethane epoxy & stainless steel pins |
| Temperature Sensor | Stainless steel waterproof tip |
| Cable | PVC, UV resistant & rodent repellent |
| Environmental Rating | MX2307 sensor and cable safe for immersion in water up to 50°C (122°F) for 1 year |
