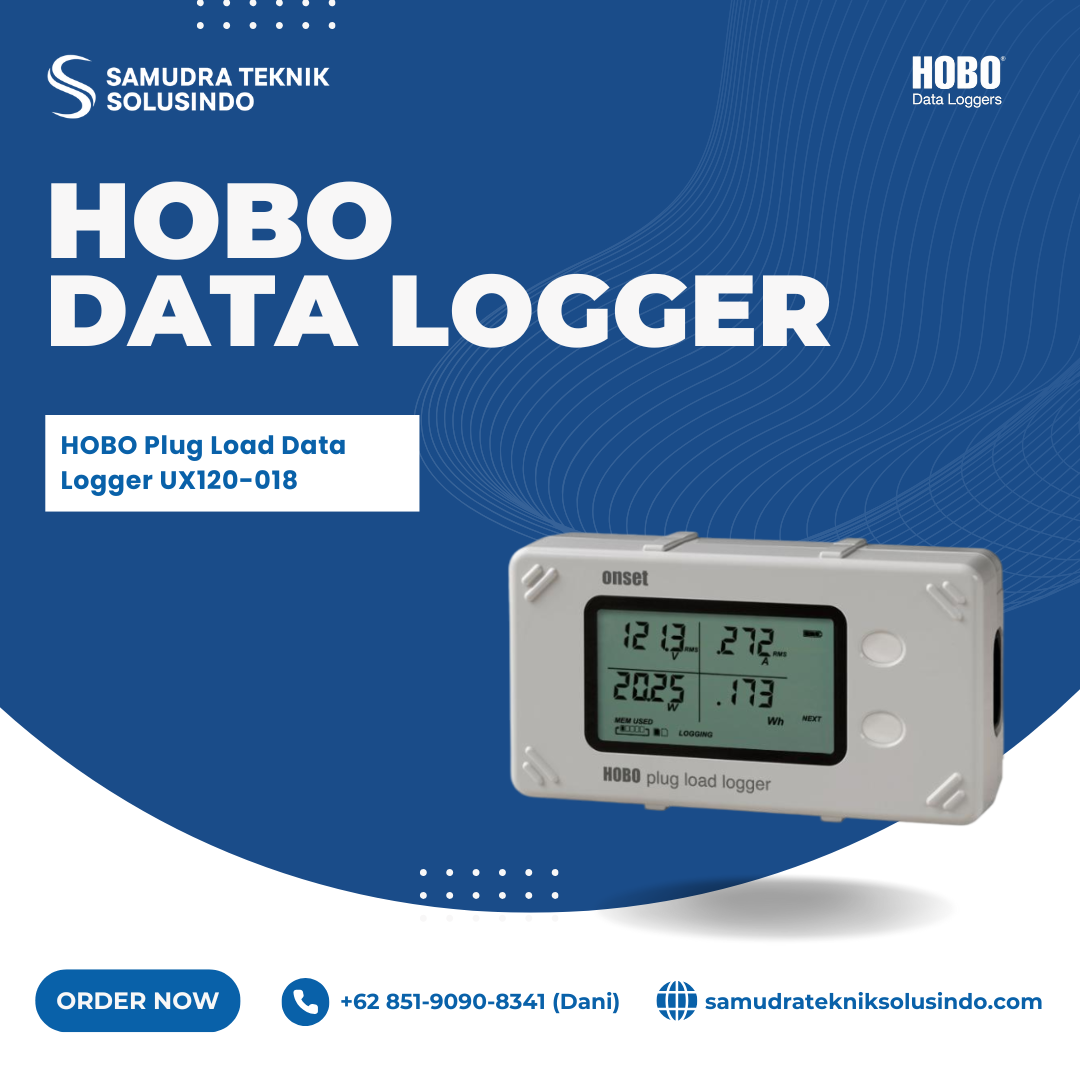

HOBO Plug Load Data Logger UX120-018
Jika anda tertarik untuk membeli alat HOBO Plug Load Data Logger UX120-018 yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :
PT. Samudra Teknik Solusindo
Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Deskripsi
HOBO Plug Load Data Logger UX120-018 merupakan data logger untuk mengukur dan merekam konsumsi daya serta energi perangkat 120V. Pengguna cukup menghubungkan perangkat kantor, mesin penjual otomatis, atau peralatan lain langsung ke logger. Selain itu, perangkat menyediakan pengukuran tegangan RMS, arus RMS, daya aktif, energi aktif, daya semu, dan faktor daya. Logger menawarkan akurasi pengukuran hingga 0,5% serta resolusi daya hingga 1 watt. Karena itu, perangkat cocok untuk audit bangunan yang membutuhkan data penggunaan energi secara terperinci.
Selanjutnya, UX120-018 menyediakan Meter Mode untuk melihat variabel beban secara real-time. Logger juga mencatat data beban berdasarkan waktu serta total energi untuk analisis penggunaan. Memori 4 MB mampu menyimpan hingga 1,4 juta pengukuran. Pengguna dapat mengatur interval pencatatan mulai satu detik hingga 18 jam, 12 menit, 15 detik. Selain itu, layar LCD membantu pengguna memeriksa kondisi dan melakukan diagnostik saat pemasangan.
Kemudian, UX120-018 mendukung rangkaian 15 ampere dengan tegangan kerja 120V AC ±10% pada 50/60Hz. Perangkat mendukung daya maksimum 1800W dan penggunaan dalam ruangan. Sumber daya utama menggunakan kabel AC sepanjang 0,92 meter atau dua baterai alkaline AAA. Baterai cadangan menjaga data tetap tersedia ketika listrik terputus. Pengguna dapat mengunduh data melalui USB 2.0 dan mengelolanya menggunakan HOBOware atau HOBOware Pro secara konsisten.
Spesifikasi
Note: The UX120-018 logger is intended for use on 15 AMP circuits (NEMA 5-15P) with a working voltage of 120V AC ±10% at 50/60Hz and a max power of 1800W.
- Indoor use only
- Insulation category 2
Maximum Current: 15 Amps
| RMS Voltage Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle | ||||||||||||
| RMS Current Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle | ||||||||||||
| Active Power Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle | ||||||||||||
| Active Energy Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle | ||||||||||||
| Power Factor Accuracy: | ±0.02 | ||||||||||||
| Drift: | Up to 0.5% typical within 1 year | ||||||||||||
| Resolution: |
|
||||||||||||
| Operating Environment: | Logging: 5° to 40°C (41° to 104°F); 0 to 95% RH (non-condensing), up to 2,000 m (6,562 ft) altitude | ||||||||||||
| Operating Modes: | Meter or logging when launched with HOBOware | ||||||||||||
| Logging Rate: | 1 second to 18 hours, 12 minutes, 15 seconds | ||||||||||||
| Statistics Sampling Rate: | 60 Hz or 16.67 mS single-cycle | ||||||||||||
| Memory Modes: | Wrap when full or stop when full | ||||||||||||
| Start Modes: | Immediate, push button, date & time, or next interval | ||||||||||||
| Stop Modes: | When memory full, push button, or date & time | ||||||||||||
| Restart Mode: | Push button | ||||||||||||
| Time Accuracy: | ±1 minute per month at 25°C (77°F), see Plot A | ||||||||||||
| Power Source: | Line-powered with 0.92 m (3 ft) AC power cord or two AAA 1.5 V alkaline batteries, user replaceable | ||||||||||||
| Battery Life: | 2 years with line power; 6 months battery only (no line power) with logging rate of 1 minute or greater operating at 25°C (77°F) | ||||||||||||
| Memory: | 4 MB (1.4 million measurements, maximum) | ||||||||||||
| Download Type: | USB 2.0 interface | ||||||||||||
| Full Memory Download Time: | Approximately 1.5 minutes | ||||||||||||
| LCD: | LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range | ||||||||||||
| Size: | 13.97 x 7.62 x 4.75 cm (5.5 x 3 x 1.87 in.) | ||||||||||||
| Weight: | 230.8 g (8.14 oz) | ||||||||||||
| Ratings: | IP50;
 UL Listed; UL Listed to Canadian safety standards |
||||||||||||
| Calibration: | This device has been calibrated using equipment that has been tested in accordance with ANSI C12.20 0.5%. |
