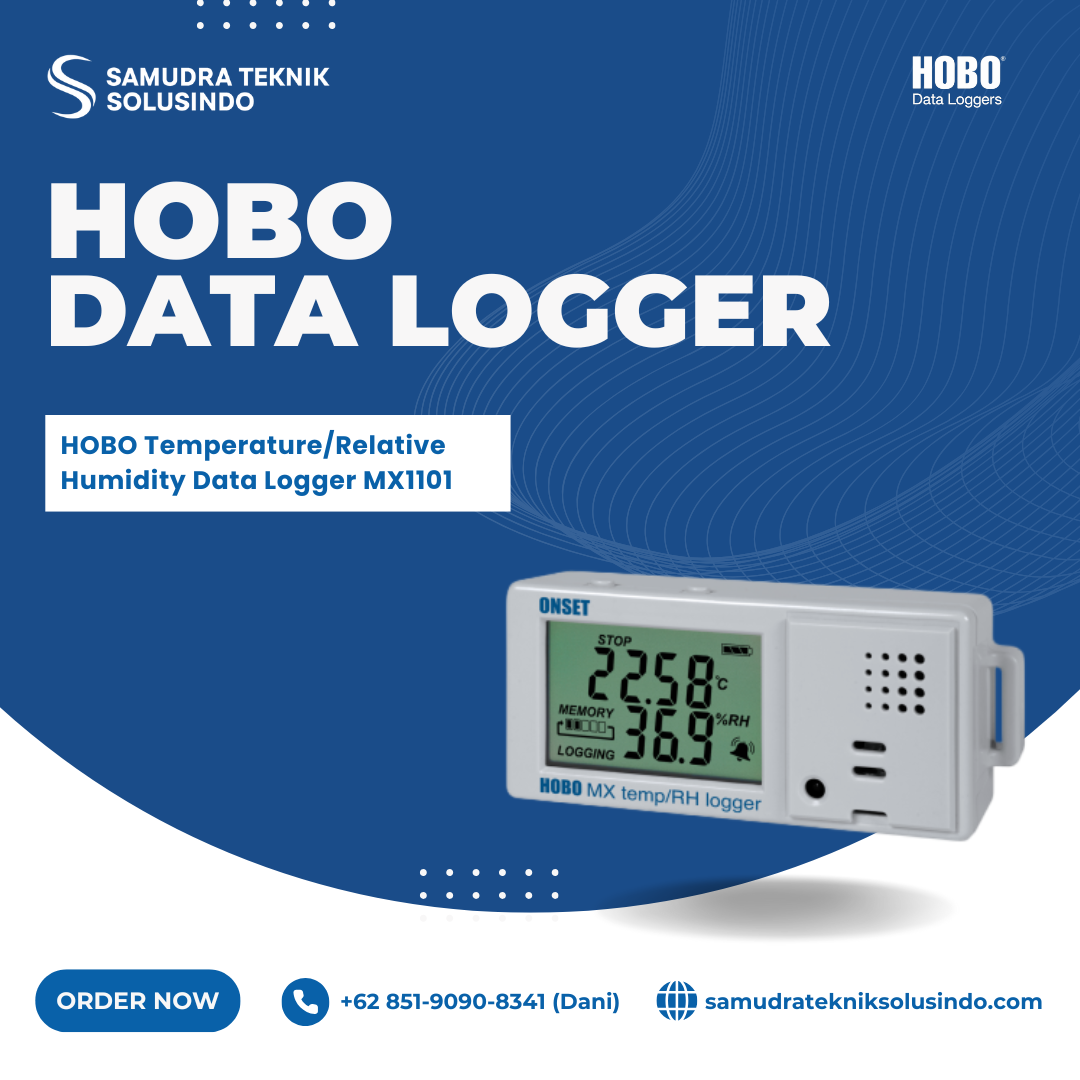

HOBO Temperature/Relative Humidity Data Logger MX1101
Jika anda tertarik untuk membeli alat HOBO Temperature/Relative Humidity Data Logger MX1101 yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :
PT. Samudra Teknik Solusindo
Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : sales.stsolusindo@gmail.com
Telp : +62 851‑9090‑8341 (Dani)
Deskripsi
Mengukur dan mengirimkan data suhu dan kelembapan relatif secara nirkabel ke perangkat seluler atau komputer Windows melalui teknologi Bluetooth.
Pencatat data nirkabel mandiri ini bekerja dengan perangkat seluler atau komputer Windows Anda dan aplikasi HOBOconnect gratis dari Onset sehingga Anda dapat mengonfigurasi pencatat dan mengunduh data saat berada dalam jarak 100 kaki dari pencatat, tanpa memerlukan peralatan khusus lainnya. Anda juga dapat melihat data dalam bentuk grafik, memeriksa status operasional pencatat, mengonfigurasi pemberitahuan alarm, dan berbagi file data.
Beli Paket Data MX untuk mendapatkan lebih banyak data dan mengaksesnya dari mana saja menggunakan platform perangkat lunak LI-COR Cloud (sebelumnya HOBOlink)! Anda juga dapat membeli stasiun MX Gateway, yang secara otomatis menurunkan data logger Anda melalui Bluetooth dan mengirimkannya ke LI-COR Cloud.
Features
- Wireless communication via Bluetooth technology
- Easy to deploy and offload using the free HOBOconnect app
- Visual and audible high & low alarm thresholds
- Stores 84,000 measurements
- Accuracy: +/- 0.2C and +/- 2%RH
- Find me/pager feature
- Patented connectivity technology
Spesifikasi
| Category | Specification |
|---|---|
| Temperature Sensor | |
| Range | -20° to 70°C (-4° to 158°F) |
| Accuracy | ±0.21°C from 0° to 50°C ±0.38°F from 32° to 122°F (see manual for plot) |
| Resolution | 0.024°C at 25°C 0.04°F at 77°F (see manual for plot) |
| Drift | <0.1°C (0.18°F) per year |
| RH Sensor* | |
| Range | 1% to 90% RH (non-condensing) |
| Accuracy | ±2% from 20% to 80% typical, max ±4.5% (incl. hysteresis) at 25°C (77°F) ±6% typical below 20% or above 80% |
| Resolution | 0.01% |
| Drift | <1% per year typical |
| Response Time | |
| Temperature | 7:30 minutes in air at 1 m/s (2.2 mph) |
| RH | 20 seconds to 90% in air at 1 m/s (2.2 mph) |
| Logger | |
| Radio Power | 1 mW (0 dBm) |
| Transmission Range | Approx. 30.5 m (100 ft) line-of-sight |
| Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart) |
| Operating Range | -20° to 70°C; 0 to 95% RH (non-condensing) -4° to 158°F; 0 to 95% RH (non-condensing) |
| Logging Rate | 1 second to 18 hours |
| Logging Modes | Fixed interval (normal or statistics), or burst |
| Memory Modes | Wrap when full or stop when full |
| Start Modes | Immediate, push button, date & time, or next interval |
| Stop Modes | Memory full, push button, date & time, or after a set logging period |
| Restart Mode | Push button |
| Time Accuracy | ±1 minute per month at 25°C (77°F) |
| Battery Life | Typical 1 year @ 1-minute logging interval Faster rates, burst mode, alarms affect battery life |
| Battery Type | Two AAA 1.5 V alkaline batteries (user replaceable) |
| Memory | 128 KB (up to 84,650 measurements) |
| Full Memory Download Time | Approx. 60 seconds (may take longer if logger is farther from device) |
| LCD | Visible from 0° to 50°C (32° to 122°F); may react slowly or go blank outside this range |
| Size | 3.66 x 8.48 x 2.29 cm 1.44 x 3.34 x 0.9 in. |
| Weight | 56 g (1.98 oz) |
| Environmental Rating | IP50 |
