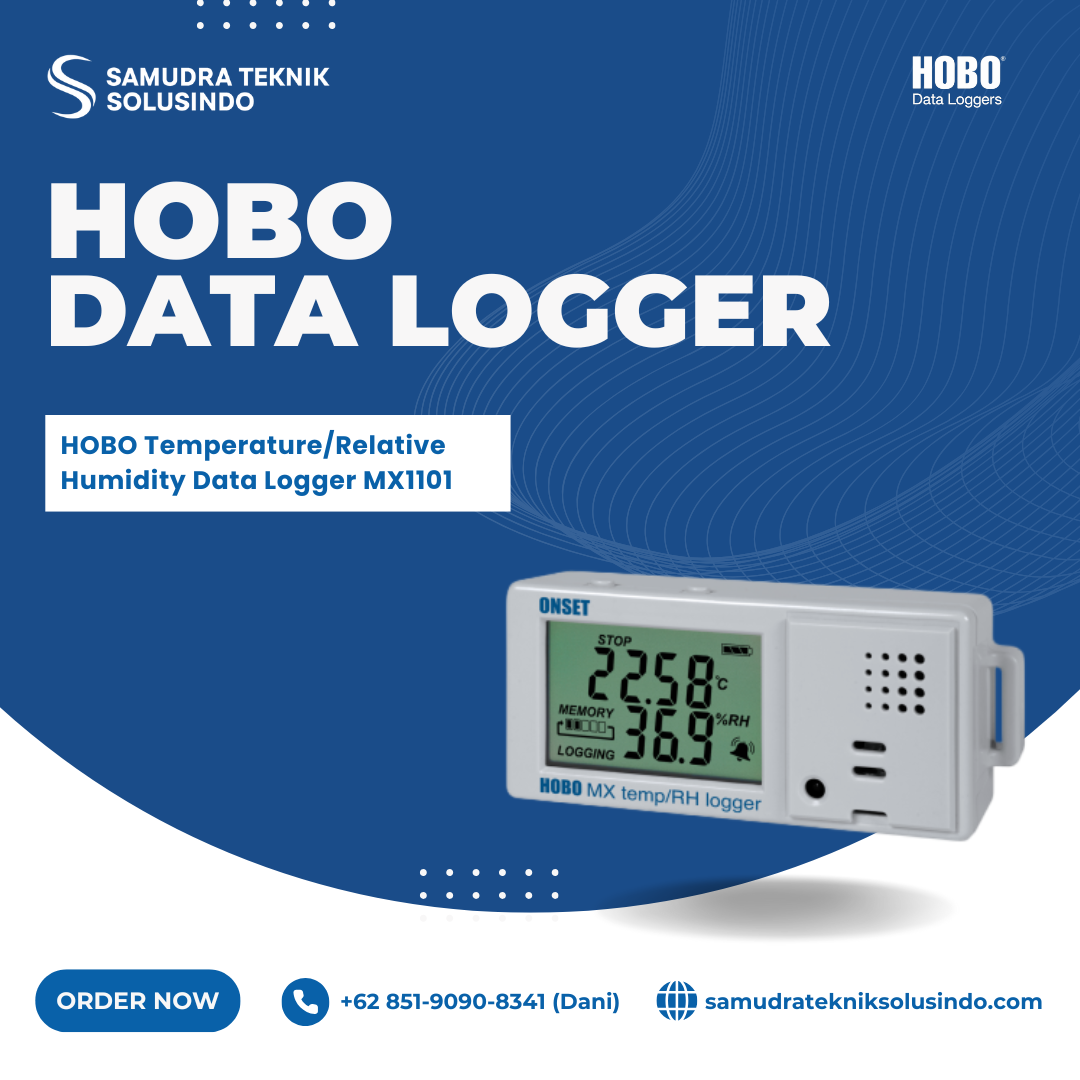

HOBO Temperature/Relative Humidity Data Logger MX1101
Jika anda tertarik untuk membeli alat HOBO Temperature/Relative Humidity Data Logger MX1101 yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :
PT. Samudra Teknik Solusindo
Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Deskripsi
HOBO Temperature/Relative Humidity Data Logger MX1101 merupakan data logger nirkabel yang mengukur suhu dan kelembapan relatif secara bersamaan. Perangkat ini menggunakan teknologi Bluetooth Low Energy untuk mengirimkan data menuju smartphone, tablet, atau komputer Windows. Pengguna dapat mengatur logger dan mengunduh data melalui aplikasi HOBOconnect tanpa memerlukan peralatan khusus. MX1101 memiliki memori hingga 84.650 pengukuran dan mendukung interval pencatatan mulai satu detik hingga 18 jam. Baterai dua AAA 1,5 V mendukung masa operasi sekitar satu tahun pada interval pencatatan satu menit.
HOBO Temperature/Relative Humidity Data Logger MX1101 menyediakan layar LCD untuk menampilkan suhu, kelembapan, status pencatatan, baterai, dan penggunaan memori. Fitur alarm visual dan suara membantu pengguna memantau kondisi di luar batas yang ditentukan. Perangkat mendukung pencatatan interval tetap, statistik, serta mode burst untuk kondisi tertentu. Jangkauan komunikasi Bluetooth mencapai sekitar 30,5 meter dalam kondisi garis pandang. MX1101 cocok untuk pemantauan kondisi lingkungan dalam ruangan dan berbagai aplikasi penelitian.
Spesifikasi
| Category | Specification |
|---|---|
| Temperature Sensor | |
| Range | -20° to 70°C (-4° to 158°F) |
| Accuracy | ±0.21°C from 0° to 50°C ±0.38°F from 32° to 122°F (see manual for plot) |
| Resolution | 0.024°C at 25°C 0.04°F at 77°F (see manual for plot) |
| Drift | <0.1°C (0.18°F) per year |
| RH Sensor* | |
| Range | 1% to 90% RH (non-condensing) |
| Accuracy | ±2% from 20% to 80% typical, max ±4.5% (incl. hysteresis) at 25°C (77°F) ±6% typical below 20% or above 80% |
| Resolution | 0.01% |
| Drift | <1% per year typical |
| Response Time | |
| Temperature | 7:30 minutes in air at 1 m/s (2.2 mph) |
| RH | 20 seconds to 90% in air at 1 m/s (2.2 mph) |
| Logger | |
| Radio Power | 1 mW (0 dBm) |
| Transmission Range | Approx. 30.5 m (100 ft) line-of-sight |
| Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart) |
| Operating Range | -20° to 70°C; 0 to 95% RH (non-condensing) -4° to 158°F; 0 to 95% RH (non-condensing) |
| Logging Rate | 1 second to 18 hours |
| Logging Modes | Fixed interval (normal or statistics), or burst |
| Memory Modes | Wrap when full or stop when full |
| Start Modes | Immediate, push button, date & time, or next interval |
| Stop Modes | Memory full, push button, date & time, or after a set logging period |
| Restart Mode | Push button |
| Time Accuracy | ±1 minute per month at 25°C (77°F) |
| Battery Life | Typical 1 year @ 1-minute logging interval Faster rates, burst mode, alarms affect battery life |
| Battery Type | Two AAA 1.5 V alkaline batteries (user replaceable) |
| Memory | 128 KB (up to 84,650 measurements) |
| Full Memory Download Time | Approx. 60 seconds (may take longer if logger is farther from device) |
| LCD | Visible from 0° to 50°C (32° to 122°F); may react slowly or go blank outside this range |
| Size | 3.66 x 8.48 x 2.29 cm 1.44 x 3.34 x 0.9 in. |
| Weight | 56 g (1.98 oz) |
| Environmental Rating | IP50 |
