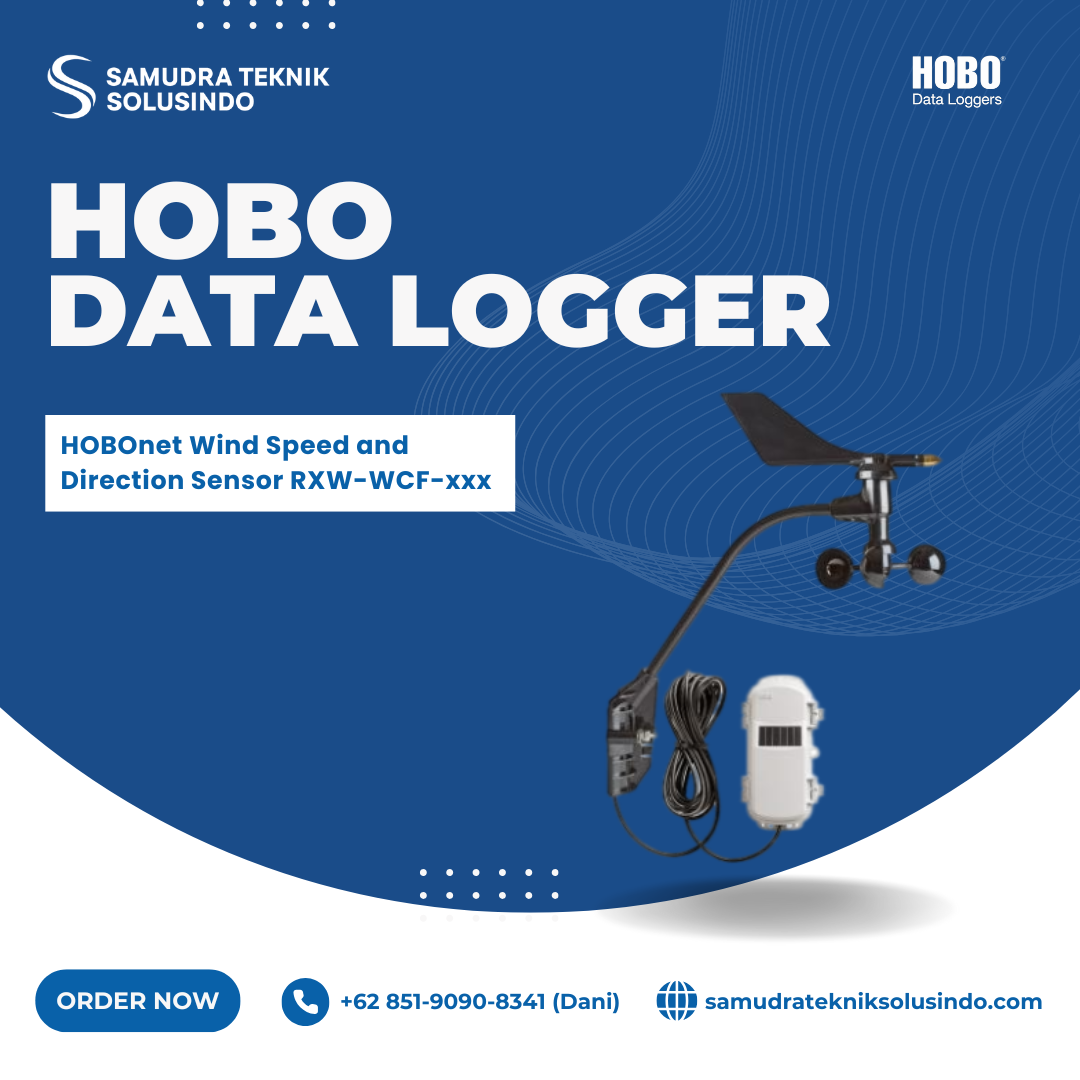

HOBOnet Wind Speed and Direction Sensor RXW-WCF-xxx
Jika anda tertarik untuk membeli alat HOBOnet Wind Speed and Direction Sensor RXW-WCF-xxx yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :
PT. Samudra Teknik Solusindo
Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : sales.stsolusindo@gmail.com
Telp : +62 851‑9090‑8341 (Dani)
Deskripsi
Sensor nirkabel yang bekerja dengan HOBOnet untuk merekam kecepatan angin, hembusan angin, dan arah angin. Sensor nirkabel HOBOnet mengkomunikasikan data secara langsung ke HOBO RX3000 atau stasiun HOBO MicroRX atau meneruskan data melalui sensor nirkabel lainnya kembali ke stasiun pusat. Sensor-sensor ini telah dikonfigurasikan sebelumnya dan siap digunakan, dan data diakses melalui HOBOlink, platform perangkat lunak berbasis cloud inovatif dari Onset.
Features
Sensor Features
- Provides average wind speed, highest 3-second wind gust, and average wind direction for the measurement interval
- Designed to meet World Meteorological Organization (WMO) guidelines
Wireless Features
- 900 MHz wireless mesh self-healing technology
- 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
- Up to 50 wireless sensors or 336 data channels per HOBO RX station
- Simple button-push to join the HOBOnet wireless network
- Onboard memory to ensure no data loss
- Powered by rechargeable AA batteries and built-in solar panel
Spesifikasi
| Category | Details |
|---|---|
| Sensor – Wind Speed/Gust | 0 to 76 m/sec (0 to 170 mph) |
| Sensor – Wind Direction | 0 to 355 degrees |
| Measurement Range | Wind Speed: 0 to 76 m/sec (0 to 170 mph); Wind Direction: 0 to 355 degrees |
| Accuracy | Wind Speed: ±1.1 m/sec (±2 mph) or ±5% of reading; Wind Direction: ±7 degrees |
| Resolution | Wind Speed: 0.5 m/sec (1.1 mph); Wind Direction: 1.4 degrees (0 to 355 degrees) |
| Starting Threshold | Wind Speed & Direction: 1 m/sec (2.2 mph) |
| Turning Radius | Wind Speed: 108 mm (4.25 in.); Wind Direction: ~135 mm (5.25 in.) |
| Measurement Definition | Wind Speed: Average over interval; Gust: Highest 3-second wind in interval; Direction: Unit vector averaging every 3 seconds |
| Wireless Mote – Operating Temp. Range | -25° to 60°C (-13° to 140°F) with rechargeable batteries; -40 to 70°C (-40 to 158°F) with lithium batteries |
| Radio Power | 12.6 mW (+11 dBm) non-adjustable |
| Transmission Range | 457.2 m (1,500 ft) at 1.8 m height; 609.6 m (2,000 ft) at 3 m height |
| Wireless Data Standard | IEEE 802.15.4 |
| Radio Operating Frequencies | RXW-WCF-900: 904–924 MHz; RXW-WCF-868: 866.5 MHz; RXW-WCF-921: 921 MHz; RXW-WCF-922: 916–924 MHz |
| Modulation Employed | OQPSK (Offset Quadrature Phase Shift Keying) |
| Data Rate | Up to 250 kbps, non-adjustable |
| Duty Cycle | <1% |
| Maximum Number of Motes | Up to 50 wireless sensors or 336 data channels per HOBO RX station |
| Logging Rate | 1 minute to 18 hours |
| Number of Data Channels | 4 |
| Battery Type / Power Source | Two AA 1.2V NiMH rechargeable batteries (solar powered) or two AA 1.5V lithium batteries |
| Battery Life | NiMH: 3–5 yrs (-20° to 40°C); Lithium: ~1 year typical use |
| Memory | 16 MB |
| Dimensions | Sensor: 470 x 191 x 121 mm (18.5 x 7.5 x 4.75 in.); Cable: 3 m (9.8 ft); Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 in.) |
| Weight | Sensor and cable: 1.332 kg (2 lb, 15 oz); Mote: 223 g (7.87 oz) |
| Materials | Sensor: Polycarbonate wind cups, SS bearing, UV ABS vane, aluminum arm; Mote: PCPBT, silicone seal |
| Environmental Rating | Sensor: Weatherproof; Mote: IP67, NEMA 6 |
