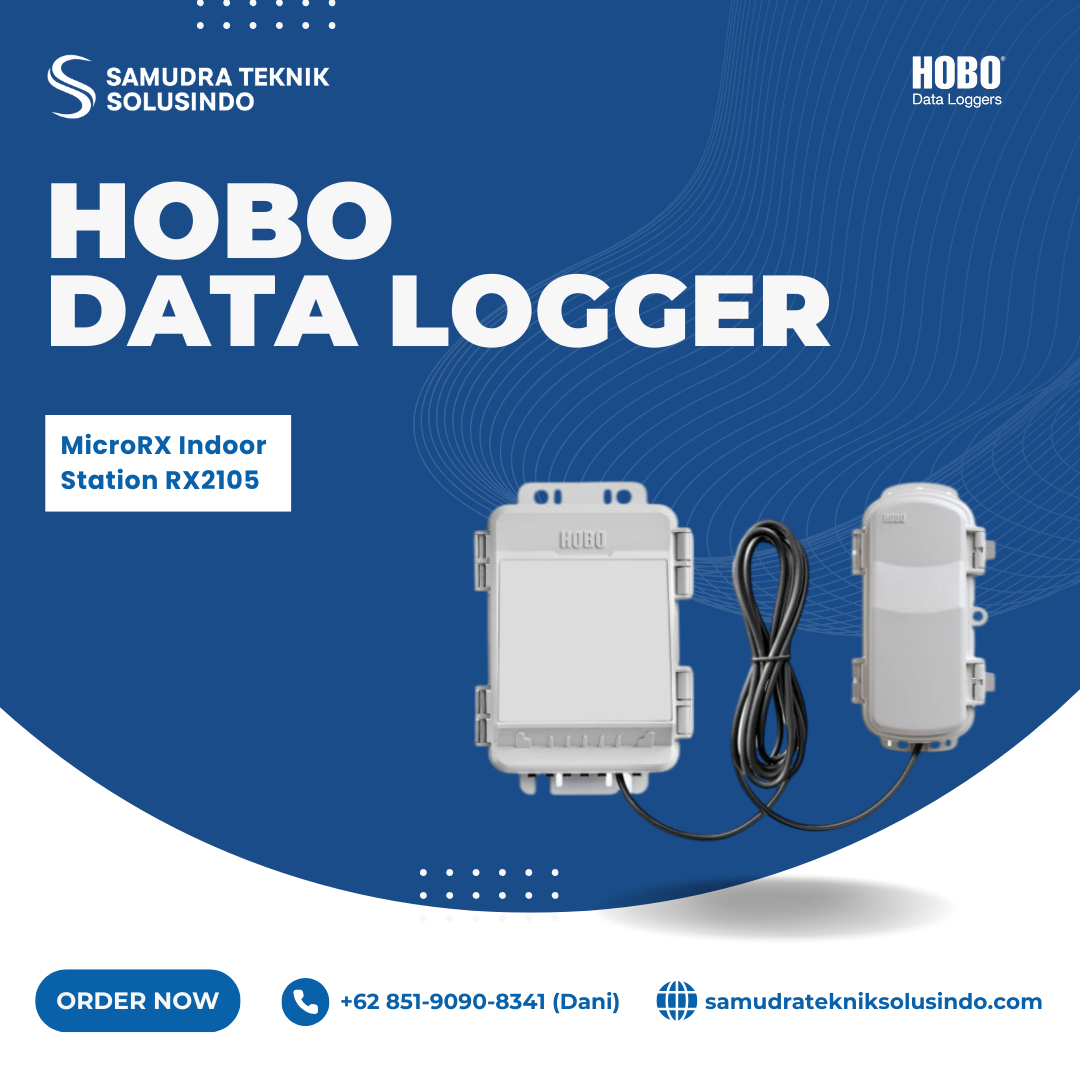

MicroRX Indoor Station RX2105
Jika anda tertarik untuk membeli alat MicroRX Indoor Station RX2105 yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :
PT. Samudra Teknik Solusindo
Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : sales.stsolusindo@gmail.com
Telp : +62 851‑9090‑8341 (Dani)
Deskripsi
Stasiun pemantauan seluler ini menawarkan solusi berbiaya rendah dan mudah digunakan untuk pemantauan jangka panjang dalam ruangan. Anda dapat menggunakannya di gudang, fasilitas penyimpanan dingin, pusat data, museum, serta bangunan komersial dan residensial. Sistem ini sudah menyertakan HOBOnet Manager terintegrasi, sehingga Anda dapat langsung menghubungkannya dengan sensor HOBOnet nirkabel.
Stasiun ini juga mendukung hingga lima sensor HOBO plug-and-play kelas riset. Anda dapat mengatur alarm sisi stasiun untuk memberikan notifikasi langsung saat kondisi kritis terjadi. Melalui platform perangkat lunak LI-COR Cloud (sebelumnya HOBOlink), Anda dapat melihat, mengakses, menganalisis, dan berbagi data dengan mudah.
Features
- Compact size and integrated HOBOnet Manager for easy deployment
- Scalable, with option to connect up to 50 wireless sensors; 600 m line-of-sight range
- Inputs for five plug-and-play sensors
- Includes AC power adapter and user-replaceable AA lithium batteries for battery back-up
- Built-in LCD confirms proper setup and operation
- Up to 10-minute connection rates via 4G cellular data plans
- Cloud-based monitoring and data access through HOBOlink
- Integrated mounting tabs for use with screws, zip ties, or U-bolts
Spesifikasi
| Parameter | Value |
|---|---|
| Operating Range | RX2105: -40° to 60°C / -40° to 140°F |
| Smart Sensor Connectors | 5 |
| Smart Sensor Network Cable Length | 100 m (328 ft) maximum |
| Smart Sensor Data Channels | Maximum of 15 (see sensor manual for details) |
| Logging Rate | 1 minute to 18 hours |
| Time Accuracy | ±8 sec/month (0° to 40°C); ±30 sec/month (-40° to 60°C) |
| Battery Type / Power Source | AC adapter (P-AC-1) and 6 AA 1.5 V lithium batteries |
| Battery Life / Power Source | Runs on AC; batteries last 3 months (daily) or 2 months (hourly connections, ~10 motes) |
| Alarm Notification Latency | Logging interval + 2–4 minutes, typical |
| Enclosure Access | Hinged door with two latches, lockable |
| LCD | Visible from 0° to 50°C (32° to 122°F) |
| Materials | Outer: Polycarbonate/PBT w/ brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam; Cable: Santoprene™ TPE; U-Bolts: Steel, zinc finish |
| Dimensions | 19.95 x 13.68 x 7.49 cm / 7.85 x 5.39 x 2.95 in. |
| Weight | 678 g / 23.9 oz |
| Mounting | U-bolts (up to 4.14 cm mast), zip ties, or flat surface w/ screws |
| Environmental Rating | Weatherproof (NEMA 4X, IP66) |
| Wireless Radio | GSM/GPRS/EDGE (850/900/1800/1900 MHz); UMTS/HSPA+ (800–2100 MHz); LTE (12 bands incl. 700–2600 MHz) |
| Antenna | 4G LTE |
| Manager Operating Range | -25° to 60°C / -13° to 140°F |
| Radio Power | 12.6 mW (+11 dBm), non-adjustable |
| Transmission Range | 457.2 m @ 1.8 m height; 609.6 m @ 3 m height |
| Wireless Data Standard | IEEE 802.15.4 |
| Radio Frequencies | RX210x-922: 916–924 MHz; RX210x-921: 921 MHz; RX210x-900: 904–924 MHz; RX210x-868: 866.5 MHz |
| Modulation | OQPSK (Offset Quadrature Phase Shift Keying) |
| Data Rate | Up to 250 kbps (non-adjustable) |
| Duty Cycle | <1% |
| Max Motes per Network | 50 |
| Manager Power Source | Powered by the station |
| Manager Dimensions | Mote: 16.2 x 8.59 x 4.14 cm / 6.38 x 3.38 x 1.63 in.; Cable: 2 m (6.56 ft) |
| Manager Weight | 159 g / 5.62 oz |
| Manager Materials | PCPBT, silicone rubber seal |
| Manager Environmental Rating | IP67, NEMA 6 |
