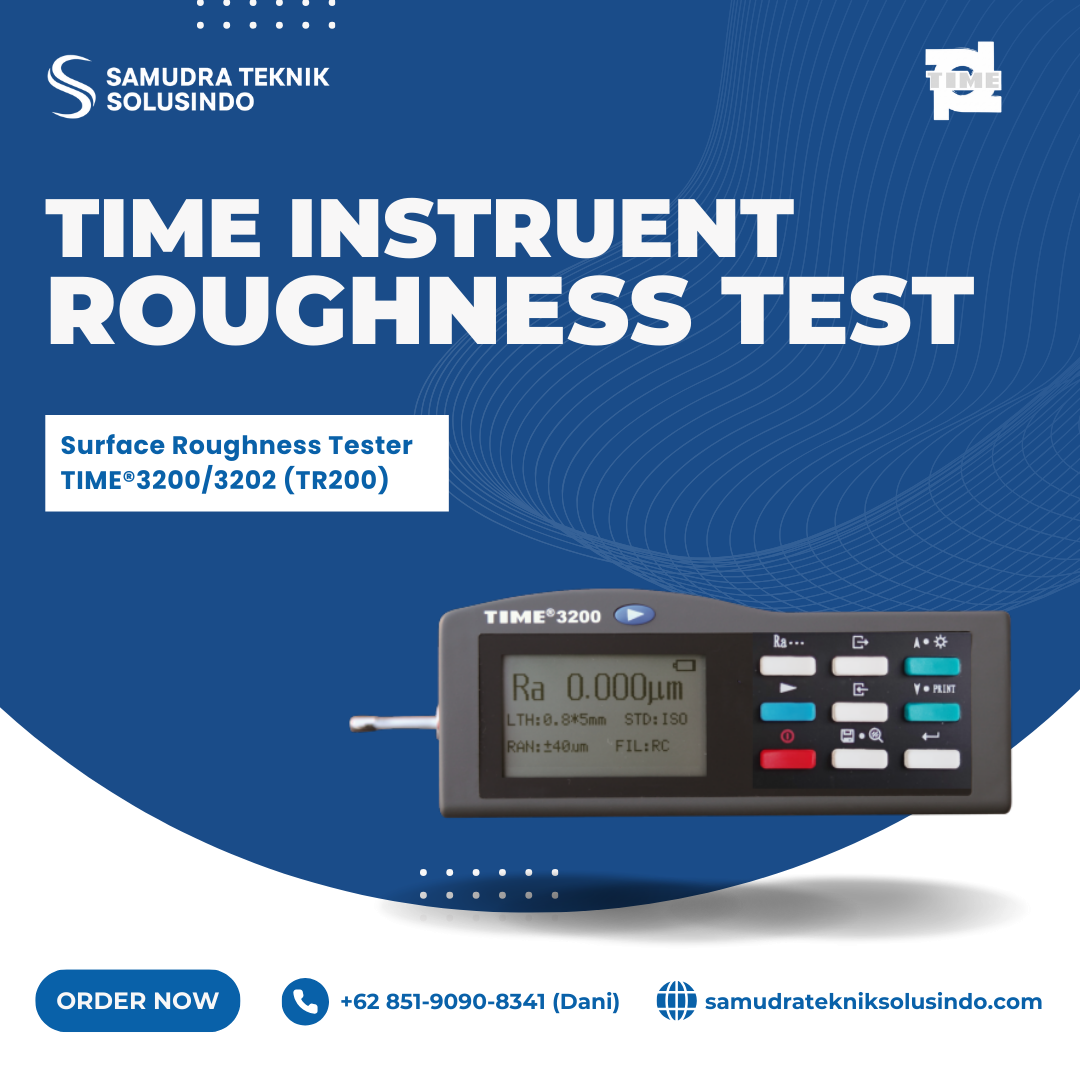

Surface Roughness Tester TIME®3200/3202 (TR200)
Jika anda tertarik untuk membeli alat Surface Roughness Tester TIME®3200/3202 (TR200) yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :
PT. Samudra Teknik Solusindo
Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : sales.stsolusindo@gmail.com
Telp : +62 851‑9090‑8341 (Dani)
Deskripsi
Surface Roughness Tester TIME®3200/3202 (TR200) menghadirkan alat ukur kekasaran yang hemat biaya dengan dukungan lebih dari selusin parameter. Alat ini memiliki ukuran kecil dan bobot ringan, namun tetap memberikan akurasi yang lebih baik. Selain itu, pengguna dapat melengkapinya dengan berbagai pickup opsional untuk berbagai aplikasi. Oleh karena itu, alat ini sangat cocok untuk pengujian kekasaran di lokasi secara langsung, dan memberikan solusi praktis serta efisien bagi berbagai kebutuhan industri.
Fitur
- Over dozen measurement parameters applicable for roughness test of various mechanical manufacturing processes in production lines, workshops and labs.
- High accuracy inductive pickup
- Easy operation manual and large LCD display with backlight.
- Pickup stylus position indicator.
- Transfer to PC via RS232 with advanced PC Software TIMESurf for more analyzing management.
- Connected with printer to print the data and graphs on-site.
- Storage and review function for up to 15 groups data and graphs.
- Rk data and graphic are available.
- Digital filter: RC, PC-RC, Gauss, D-P
- Optional delicate accessories for more accurate results and easier operation eg. measuring platform, steel support and so on
- Conform to ISO standard, compatible with DIN, ANSI and JIS standard.
- Top quality Li-ion rechargeable battery.
Spesifikasi
| Specification | TIME® 3200 | TIME® 3202 |
|---|---|---|
| Model | TIME® 3200 | TIME® 3202 |
| Roughness parameters | Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr | Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, Rpc, Rk, Rpk, Rvk, Mr1, Mr2 |
| Assessed profiles | Roughness profile (R), Primary profile (P) | Roughness profile (R), Primary profile (P) |
| Measuring system | Metric, imperial | Metric, imperial |
| Display resolution | 0.001 µm | 0.001 µm |
| Data output | RS232 | RS232 |
| Pickup measuring range | ±20 µm, ±40 µm, ±80 µm | ±20 µm, ±40 µm, ±80 µm |
| Cutoff length (L) | 0.25 mm / 0.8 mm / 2.5 mm / Auto | 0.25 mm / 0.8 mm / 2.5 mm / Auto |
| Evaluation length | 1~5L (selectable) | 1~5L (selectable) |
| Tracing length | 3~7L (selectable) | 3~7L (selectable) |
| Digital filter | RC, PC-RC, Gauss, D-P | RC, PC-RC, Gauss, D-P |
| Max. tracing length | 17.5 mm / 0.71 inch | 17.5 mm / 0.71 inch |
| Min. tracing length | 1.3 mm / 0.052 inch | 1.3 mm / 0.052 inch |
| Pick-up | Standard pickup TS100, inductive, diamond stylus radius 5 µm, angle of stylus 90° | Same as TIME® 3200 |
| Accuracy | ≤±10% | ≤±10% |
| Repeatability | ≤6% | ≤6% |
| Power | Li-ion battery rechargeable | Li-ion battery rechargeable |
| Dimensions (mm) | 140 × 52 × 48 | 140 × 52 × 48 |
| Weight (g) | 440 g | 440 g |
