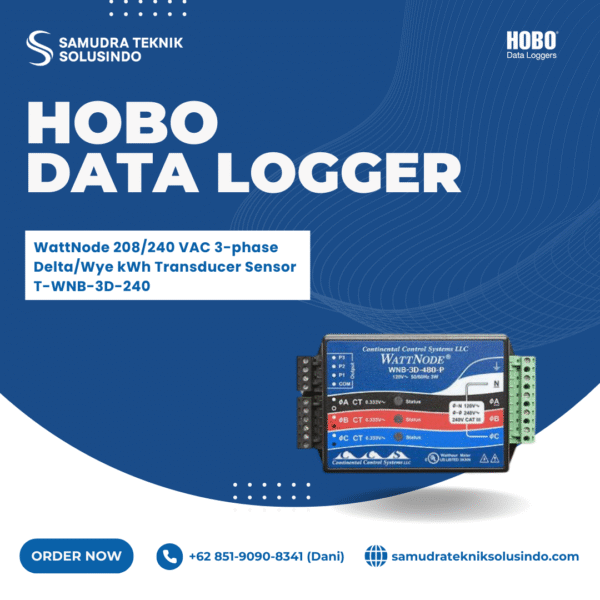

WattNode 208/240 VAC 3-phase Delta/Wye kWh Transducer Sensor T-WNB-3D-240
Jika anda tertarik untuk membeli alat WattNode 208/240 VAC 3-phase Delta/Wye kWh Transducer Sensor T-WNB-3D-240 yang disediakan oleh PT Samudra Teknik Solusindo, silahkan hubungi kami melalui :
PT. Samudra Teknik Solusindo
Alamat: Jl. Pd. Kelapa Raya No.8D Blok E10, RT.9/RW.11, Pondok Kelapa, Durensawit, East Jakarta City, Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : sales.stsolusindo@gmail.com
Telp : +62 851‑9090‑8341 (Dani)
Deskripsi
WattNode 208/240 VAC 3-phase Delta/Wye kWh Transducer Sensor T-WNB-3D-240 menyediakan pengukuran akurat dengan biaya rendah untuk sub-metering, net-metering, dan manajemen energi. WattNode 208/240 VAC 3-phase Delta/Wye kWh Transducer Sensor T-WNB-3D-240 juga mendukung aplikasi kontrak kinerja. Transduser ini bekerja dengan Trafo Arus AC Magnelab dan Adaptor Input Pulsa untuk menghasilkan kilowatt jam energi True RMS, bahkan pada beban dengan bentuk gelombang non-sinusoidal.
Karena sensor ini langsung terhubung ke saluran, hanya personel berkualifikasi yang boleh menggunakannya. Model ini mendukung koneksi Delta 3 fase 208/240 VAC dan dirancang untuk memberikan keandalan pada sistem pemantauan daya listrik Anda.
Features
- Measures 1, 2, or 3 phases in 2, 3, or 4 wire configurations
- Use with wide choice of CTs (sold separately); ratings from 5 to 1500 amps
- Accurate measurement of 1-, 2-, or 3-phase configurations
- Easy to install and wire
- Pulse output: compatible with pulse input logger models
- Small size: can be installed in existing service panels or junction boxes
- Diagnostic LEDs: confirms proper installation for all phases
- Bidirectional metering: net metering for PV (photovoltaic) solar and wind power generation with only one meter
- Metering of variable frequency drives
- Line powered: no external supply required
- Detachable terminal blocks: easy to install and remove
- UL, cUL listed: designed and tested for safety and use throughout North America
- CE Mark: can be installed throughout the EU
Spesifikasi
| Category | Specification |
|---|---|
| Operating Voltage Range | ±20% of nominal |
| Frequency | 60 Hz |
| CT Input | 0–0.5 VAC operating, 3 VAC maximum |
| Connectors | UL, CSA recognized, detachable screw terminals (14 AWG), 600V |
| Operating Temperature Range | -30 to 60°C (-22 to 140°F) |
| Operating Humidity Range | 0 to 90% RH, non-condensing |
| Dimensions | 8.5 cm x 14.3 cm x 3.8 cm (3.3 in. x 5.6 in. x 1.5 in.) |
| Weight | 295 g (10.4 oz.) |
| Number of Data Channels | 2 |
| Voltage Configuration Ranges | Delta or Wye: 208, 480 Volts AC |
| Supported Configurations | - 1 Phase 2 Wire 208V (No neutral)- 1 Phase 2 Wire 240V (No neutral)- 1 Phase 3 Wire 120V/240V- 3 Phase 3 Wire 208V (No neutral)- 3 Phase 4 Wire 120V/208V |
| Accuracy | ±0.45% of reading + 0.05% FS through 25th harmonic(accuracy may vary 1.5% to 4% depending on CT and line variation) |
